Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different variant/trim than selected.

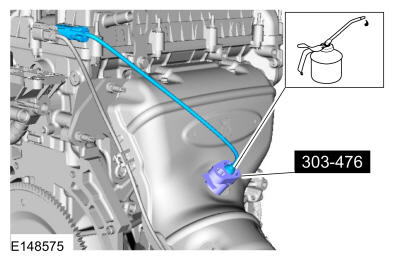

- Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below. Install the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque: 35 lb.ft (48 Nm)
- Attach the wiring harness retainer.
- Connect the HO2S electrical connector.
