Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- Remove the RH front fender splash shield. Refer to: Fender Splash Shield .

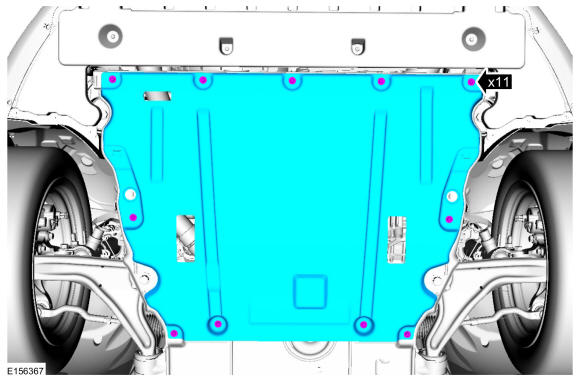

- Remove the retainers and the engine undershield.
-

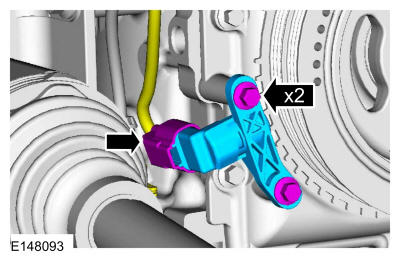

- Disconnect the CKP sensor electrical connector.
- Remove the 2 CKP sensor bolts and the CKP sensor.
