Electronic Engine Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

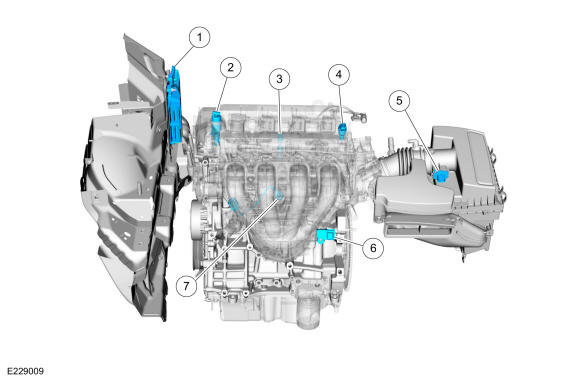

LH Engine Sensor Locations
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCM |
| 2 |
VVT oil control solenoid |
| 3 |
CHT sensor |
| 4 |
CMP sensor |
| 5 |
Mass Air Flow (MAF) and Intake Air Temperature (IAT) sensor |
| 6 |
MAP sensor |
| 7 |
KS |

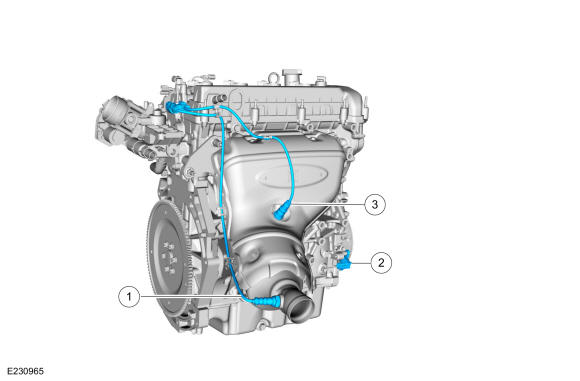

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Catalyst monitor sensor |
| 2 |
CKP sensor |
| 3 |
HO2S sensor |
