Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation steps.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
- Remove the rear wheel on the left-hand side. Refer to: Wheel and Tire .
- Remove the nuts.

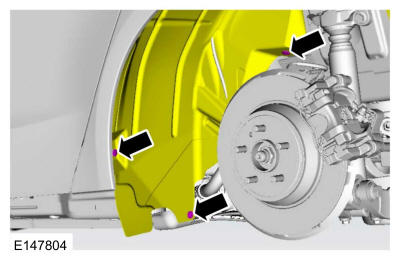

- Remove the pushpins and position aside rear wheel splash shield aside.

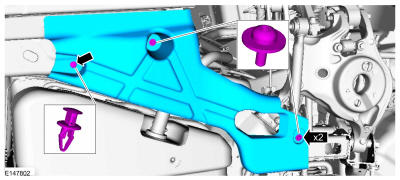

- Remove the screws, the clip and the air deflector.

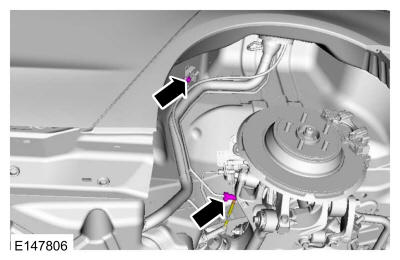

- Disconnect the vapor tube Quick Release Coupling and remove the bolt.
Torque: 80 lb.in (9 Nm)

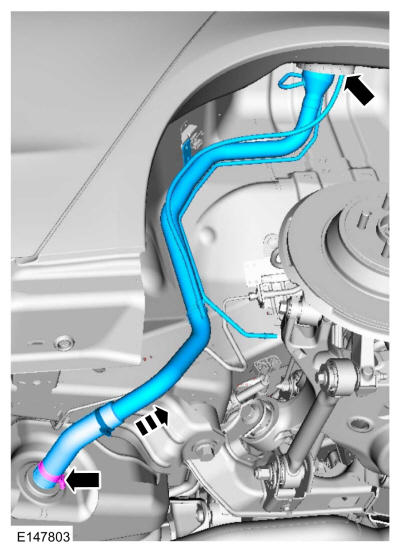

- Release the clamp and disconnect the fuel tank filler pipe from the fuel tank.
Torque: 36 lb.in (4.1 Nm)
