Fuel Lines: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Remove the Fuel Tank. Refer to: Fuel Tank .

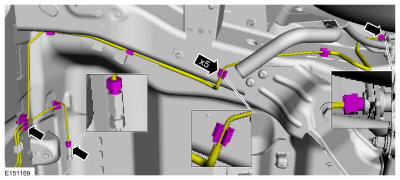

- Disconnect the brake lines.
  Torque: 133 lb.in (15 Nm)

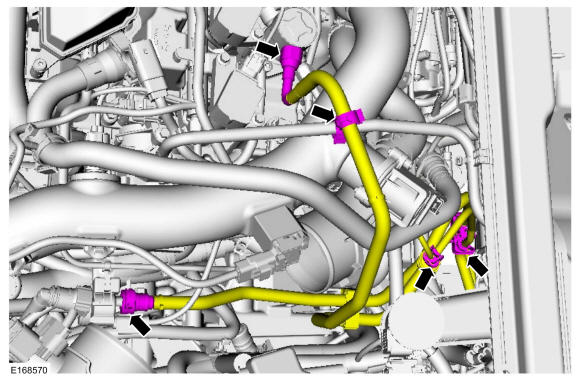

- Disconnect the electrical connector and fuel line retainer.
Courtesy of FORD MOTOR COMPANY

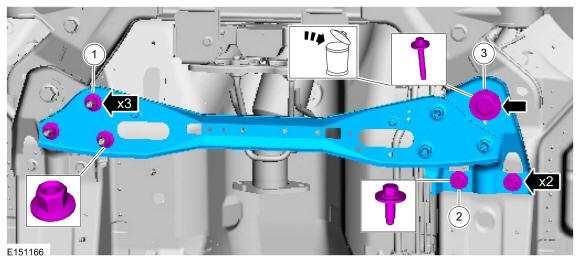

1. Remove the nuts.
  Torque: 33 lb.ft (45 Nm)
2. Remove the bolts.
  Torque: 44 lb.ft (60 Nm)
3. NOTE: Discard the specified component. Follow local disposal regulations.

  Remove the bolt and the cross member.

  Torque: Stage 1: 76 lb.ft (103 Nm) | Stage 2: 270°
Courtesy of FORD MOTOR COMPANY
Disconnect the brake lines.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

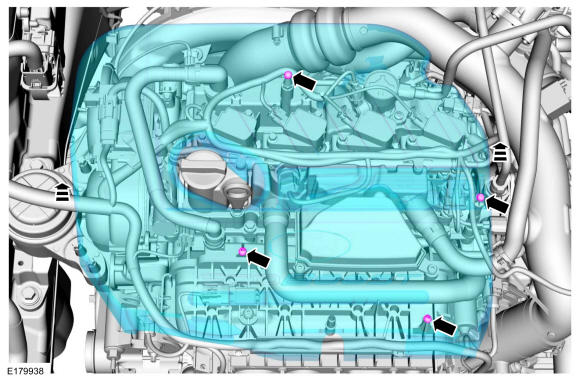

Remove the engine cover.

Courtesy of FORD MOTOR COMPANY
Remove the Air Cleaner Outlet Pipe. Refer to: Air Cleaner Outlet Pipe .
NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.

Disconnect the quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

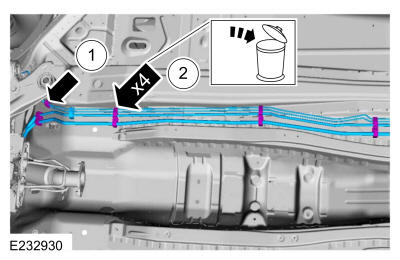

1. Disconnect the fuel line retainer.
2. Disconnect and discard the fuel line retainers attaching to underbody. Remove the fuel lines from the vehicle.

Courtesy of FORD MOTOR COMPANY
