Fuel Level Sender: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

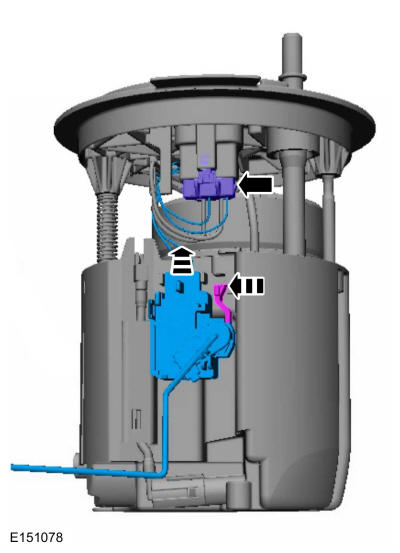

Disconnect the fuel level sender electrical connector, release the retainer tab and remove the fuel level sender.

Courtesy of FORD MOTOR COMPANY
