Wastegate Control Valve Solenoid: Installation

WARNING: This page is about a different variant/trim than selected.

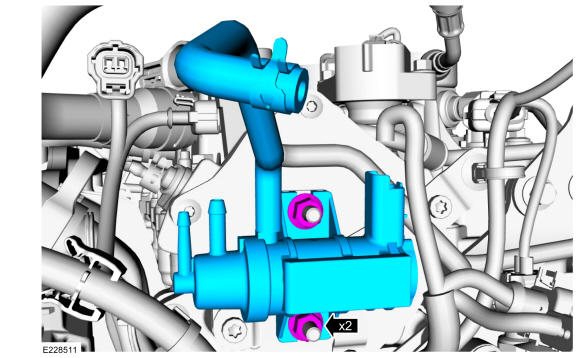

Install the wastegate control valve solenoid, then install and tighten the new wastegate control valve solenoid retaining nuts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the wastegate control valve solenoid hoses and the wastegate control valve solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY
- Install the CAC intake pipe and then install and tighten the bolt.
  Torque: 71 lb.in (8 Nm)
- Tighten the CAC intake pipe clamps.
  Torque: 44 lb.in (5 Nm)
- Connect the bypass hose and clamp to the CAC intake pipe.
- Attach the wiring retainers and then connect the electrical connectors to the CAC intake pipe.
Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
