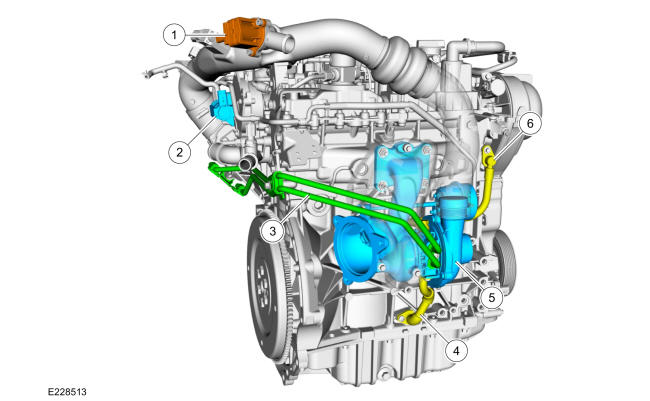

1.5L EcoBoost Turbocharger Components
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger bypass valve |
| 2 |
Wastegate control valve solenoid |
| 3 |
Turbocharger coolant tubes |
| 4 |
Turbocharger oil return tube |
| 5 |
Turbocharger |
| 6 |
Turbocharger oil supply tube |
