Fuel Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Refer to: Fuel System Pressure Release .
- Refer to: Battery Disconnect and Connect .

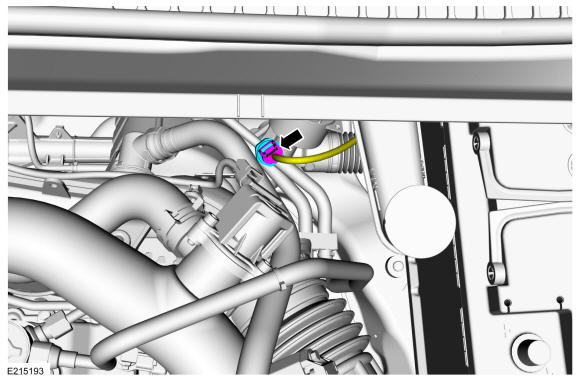

- Disconnect the fuel pressure sensor electrical connector and remove the fuel pressure sensor.
Torque: 22 lb.ft (30 Nm)
