Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

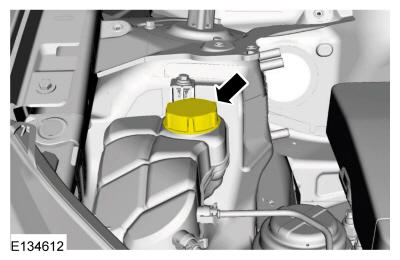

NOTE: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Loosen the coolant expansion tank cap. Loosen: 2 turn(s)
Tighten the coolant expansion tank cap.
Torque: 2turn(s)

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
NOTE: Have the new component ready to install to reduce coolant loss.

NOTE: Be prepared to capture escaping fluid with a shop towel.

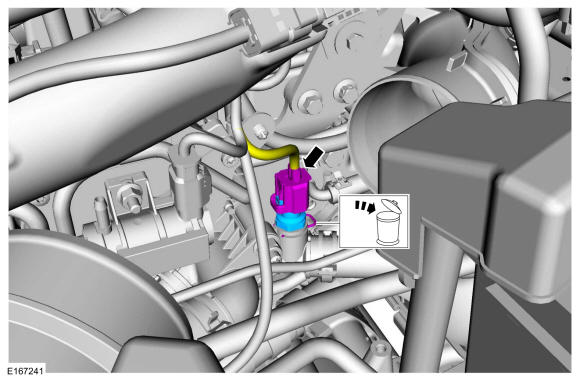

- Disconnect the ECT electrical connector.
- Release the retaining clip.
- Remove the ECT sensor.

Courtesy of FORD MOTOR COMPANY
