Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

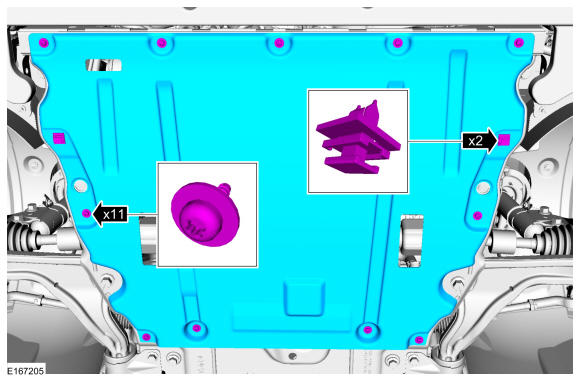

Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY

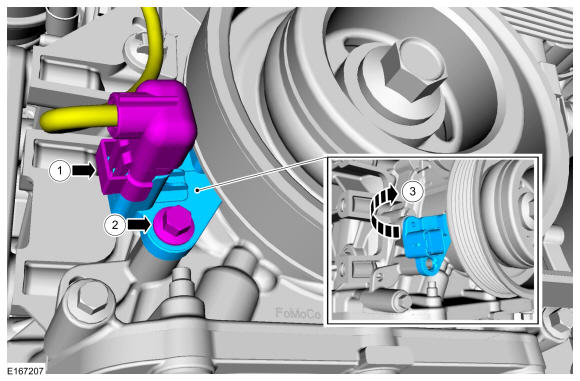

1. Disconnect the CKP sensor electrical connector.
2. Remove the bolt.
  Torque: 89 lb.in (10 Nm)
3. Remove the CKP sensor.

Courtesy of FORD MOTOR COMPANY
