Boost Pressure Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

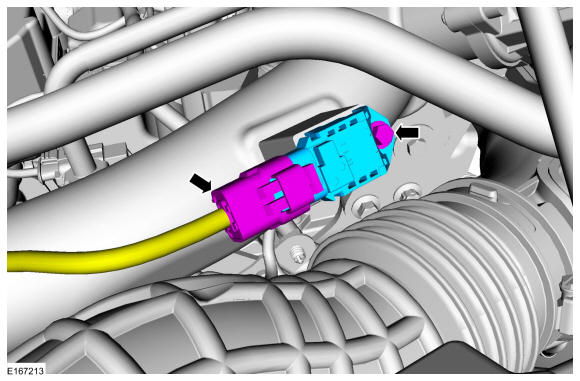

  1. Disconnect the electrical connector, remove the retainer and the turbocharger boost pressure sensor.

    Torque: 89 lb.in (10 Nm)

GFD482356Courtesy of FORD MOTOR COMPANY
