Section 51 (Automatic Transmission - 6-Speed Automatic Transmission - 6F35 (1 Of 3))
>>
Description And Operation
>>
Transmission Description
>>

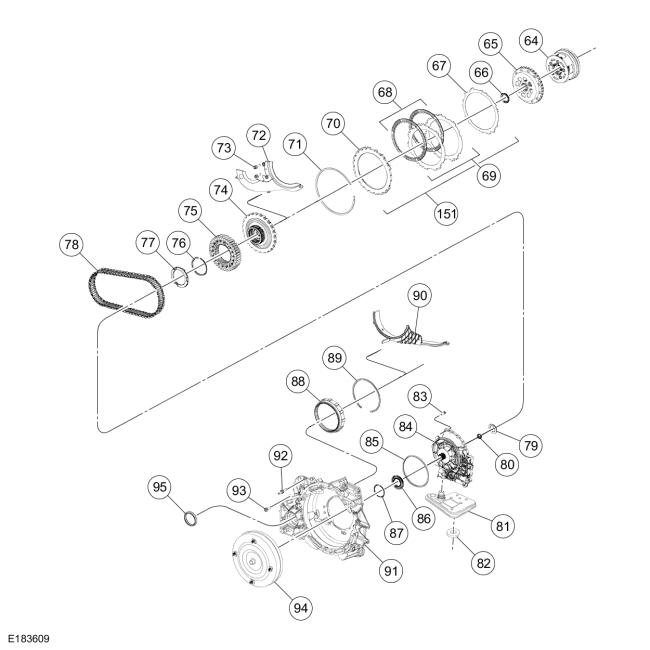

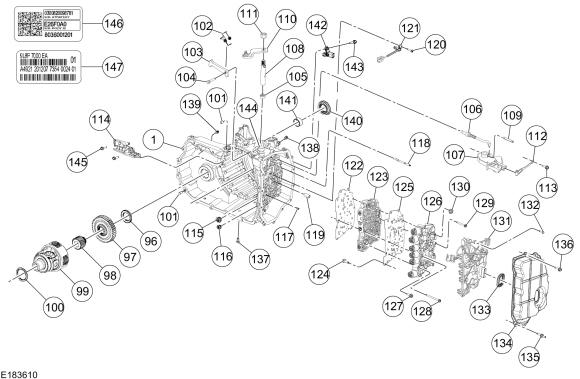

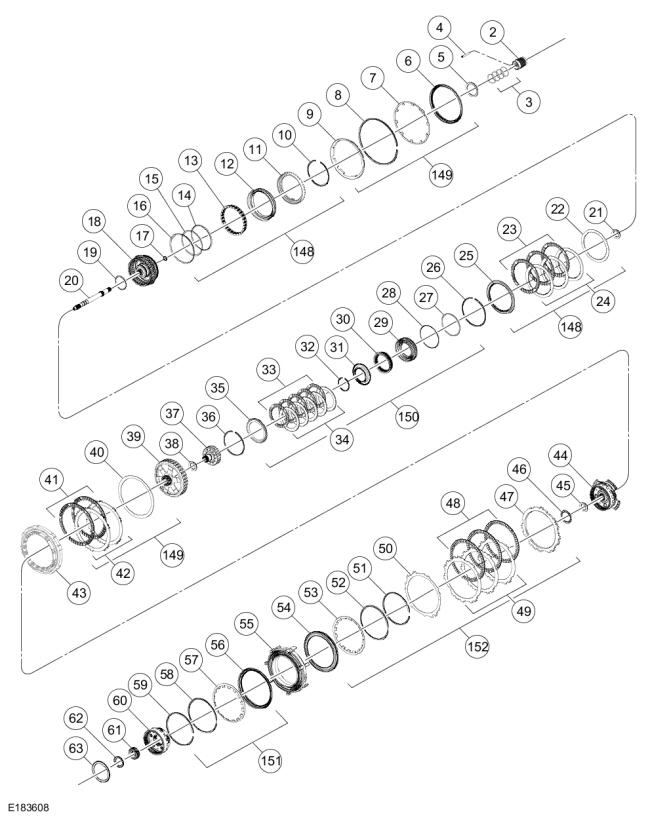

Disassembled Views
Disassembled Views
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
