Transmission Fluid Warmer: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the battery tray. Refer to: Battery Tray .
- Remove the nut and disconnect the ground cable terminal from the transmission-to-transmission fluid warmer tube stud bolt.
-
NOTE: Be prepared to collect escaping fluid.
Remove the bolt, the studbolt and the transmission-to-transmission fluid warmer tube.

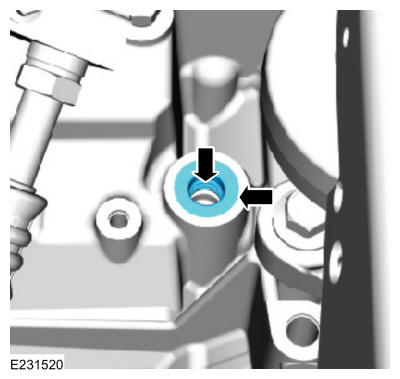

- Inspect the transmission to be sure the transmission fluid tube seal and backing ring were removed with the transmission fluid tube and are not stuck in the transmission. If the transmission fluid tube seal or backing ring are stuck in the transmission, remove the seal and backing ring.
-
NOTE: Be prepared to collect escaping fluid.

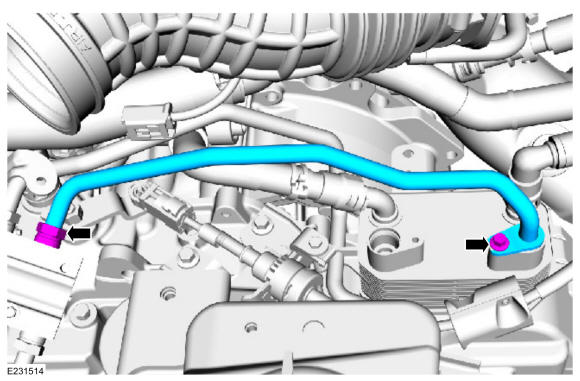

Completely loosen the fitting, remove the bolt and remove the transmission fluid warmer-to-cooler bypass valve tube.

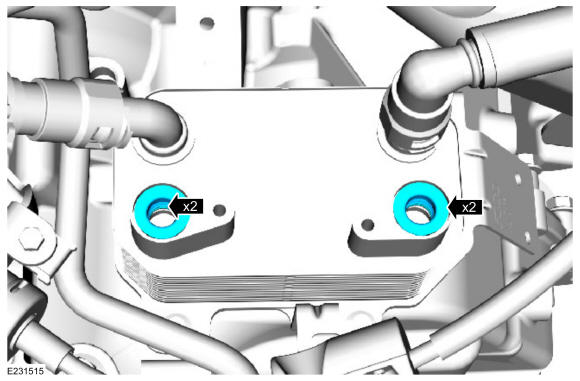

- Inspect the transmission fluid warmer to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission fluid warmer. If the transmission fluid tube seals or backing rings are stuck in the transmission fluid warmer, remove the seals and backing rings.
-
NOTE: Be prepared to collect escaping fluid.
Clamp the coolant hoses and disconnect the coolant hose quick connect couplings from the transmission fluid warmer. Use the General Equipment: Hose Clamp(s)
- Remove the bolts, the nut and the transmission fluid warmer.
