Transmission Fluid Warmer: Installation
WARNING: This page is about a different variant/trim than selected.

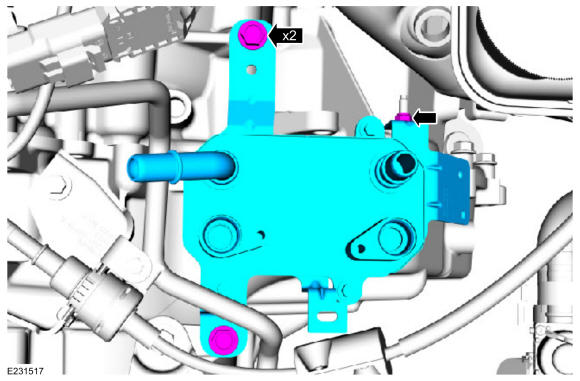

- Install the transmission fluid warmer the nut and the bolts.
Torque: 18 lb.ft (25 Nm)

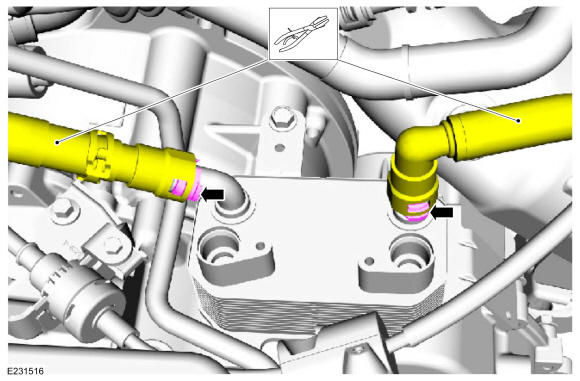

- Connect the coolant hose quick connect couplings to the transmission fluid warmer and remove the clamps. Use the General Equipment: Hose Clamp(s)

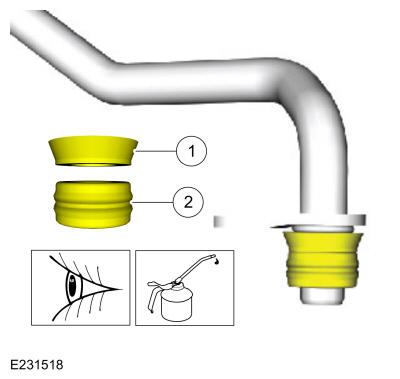

- Inspect the transmission fluid warmer-to-cooler bypass valve tube backing ring and seal for damage and install new a backing ring or seal if necessary.
- Backing ring (7J324)
- Seal (7D285)
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

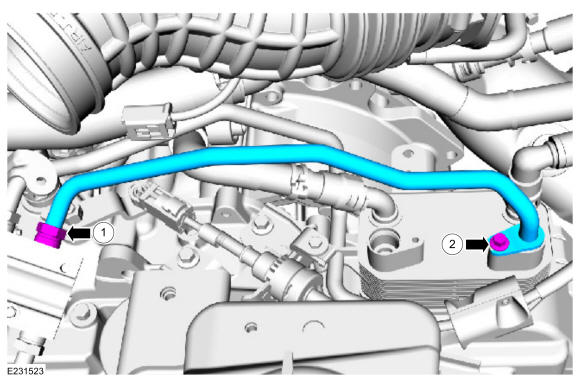

- Install the transmission fluid warmer-to-cooler bypass valve tube, tighten the fitting and install the bolt.
- Torque: 16 lb.ft (22 Nm)
- Torque: 80 lb.in (9 Nm)

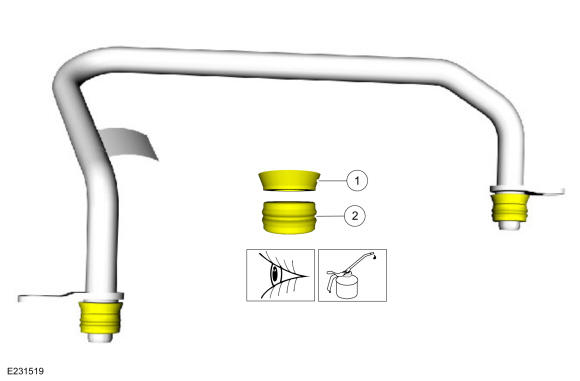

- Inspect the transmission-to-transmission fluid warmer tube backing rings and seals for damage and install new backing rings or seals if necessary.
- Backing ring (7J324)
- Seal (7D285)
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

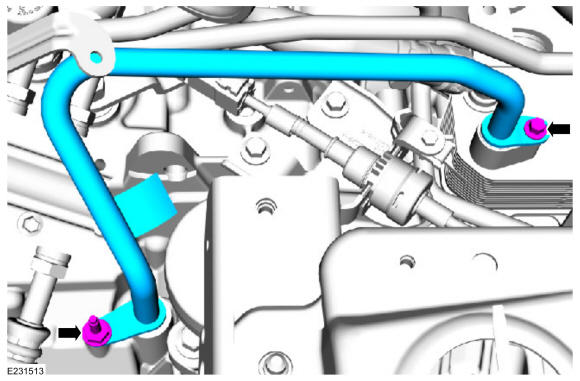

- Install the transmission-to-transmission fluid warmer tube, the studbolt and the bolt.
Torque: 80 lb.in (9 Nm)

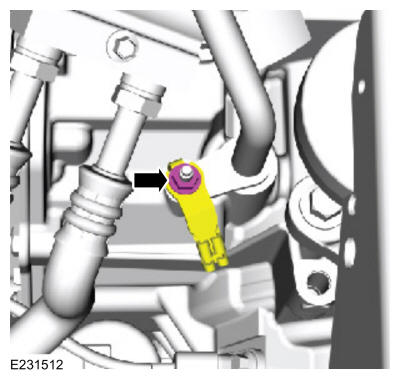

- Connect the ground cable terminal from the transmission-to-transmission fluid warmer tube stud bolt and install the nut.
Torque: 80 lb.in (9 Nm)
- Install the battery tray. Refer to: Battery Tray .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
- Check the engine coolant level and adjust as necessary. For 1.5L, Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding . For 2.0L, Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding . For 2.5L, Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
