Transmission Fluid Cooler Tubes - 2.0L EcoBoost (184kW/250PS) - MI4: Installation

WARNING: This page is about a different variant/trim than selected.

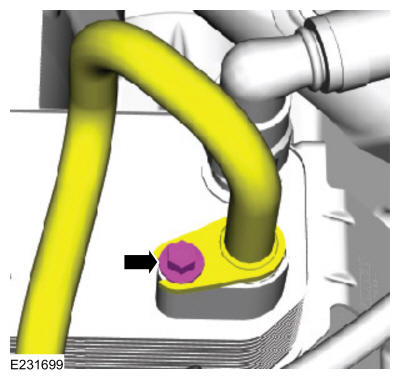

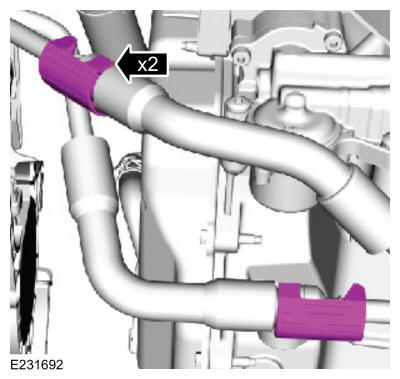

Install the cooler side bypass valve tubes and position the clamps.

Courtesy of FORD MOTOR COMPANY

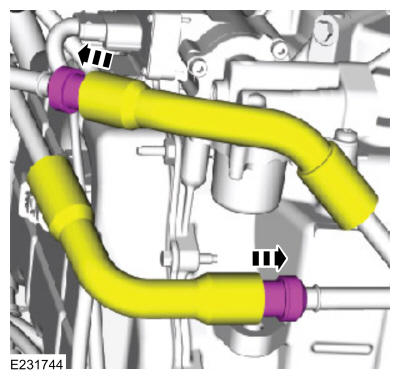

Connect the cooler side cooler bypass valve tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the active grille shutter. Refer to: Active Grille Shutter .

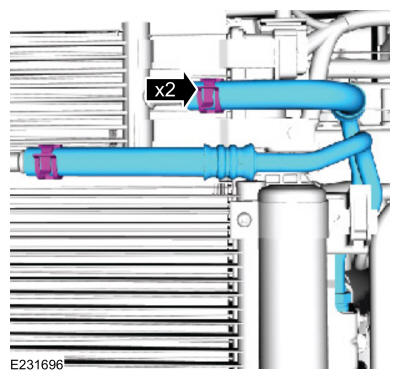

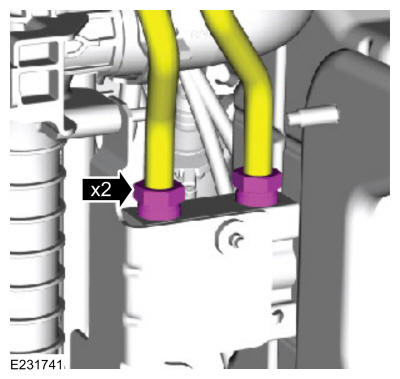

Install the transmission side cooler bypass valve tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

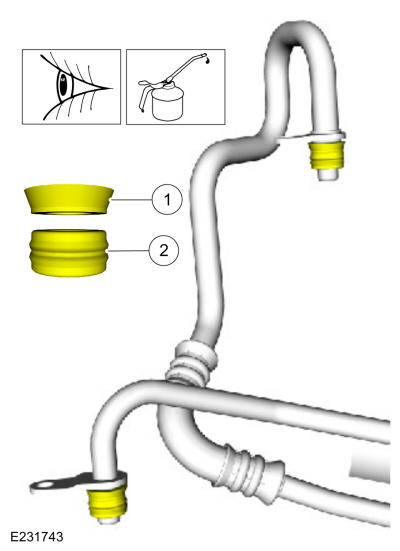

Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

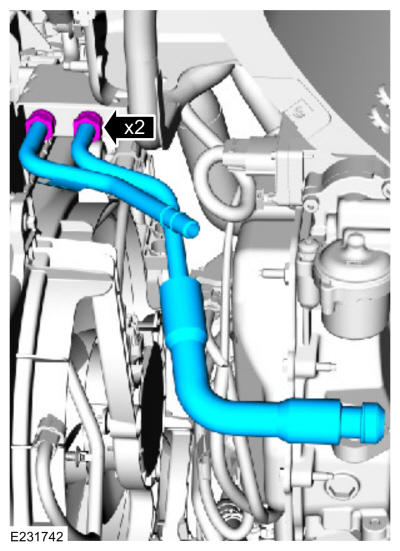

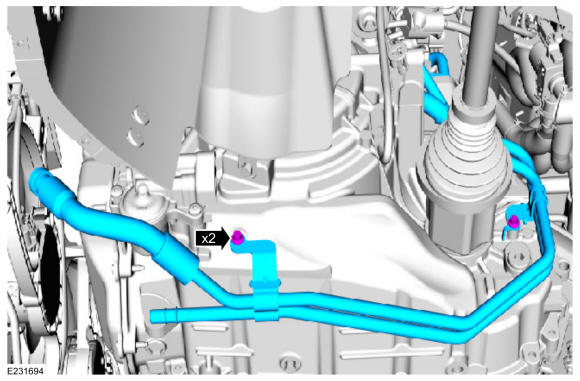

Install the transmission fluid cooler tube assembly and the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid tube quick connect couplings.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid tube secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

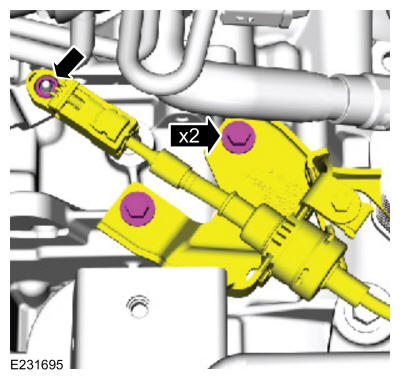

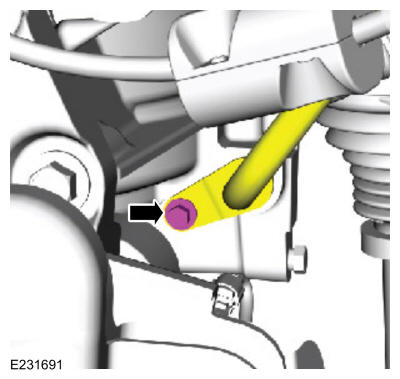

Position the selector lever cable, install the bolts and connect the cable to the transmission manual lever.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission tube assembly bolt to the transmission.

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler tube from the transmission fluid warmer and install the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the transmission-to-transmission fluid warmer tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

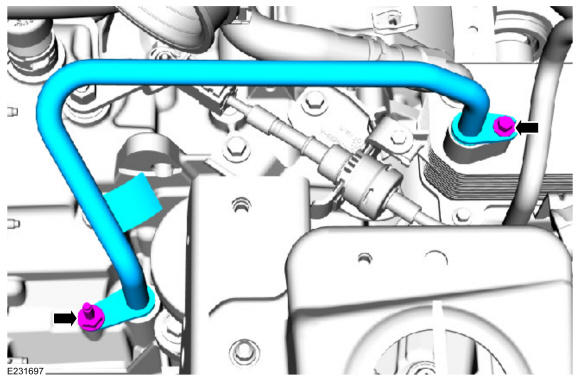

Install the transmission-to-transmission fluid warmer tube, the studbolt and the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the ground cable terminal from the transmission-to-transmission fluid warmer tube stud bolt and install the nut.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray support bracket, the nut and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the air cleaner at this time.

Install the battery tray. Refer to: Battery Tray .
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 2.0L EcoBoost (184kW/250PS) - MI4 .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
