Transmission Fluid Cooler Tubes - 1.5L EcoBoost (110kW/150PS) - I4: Installation

WARNING: This page is about a different variant/trim than selected.

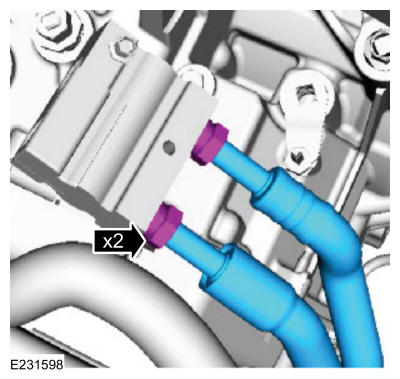

Install the bypass valve-to-transmission fluid cooler tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

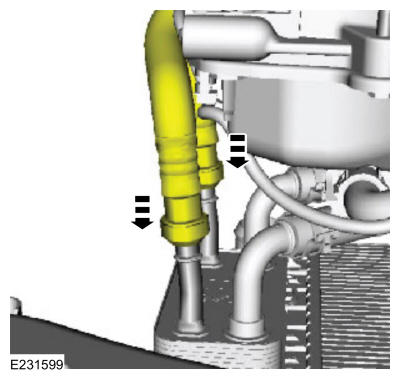

Connect the transmission fluid cooler tubes to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

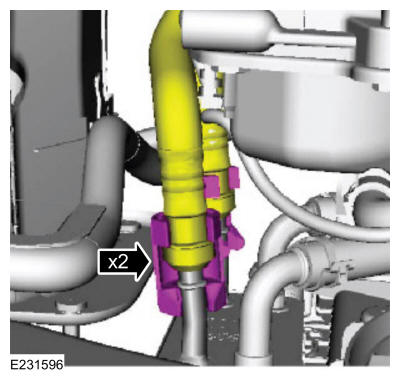

Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

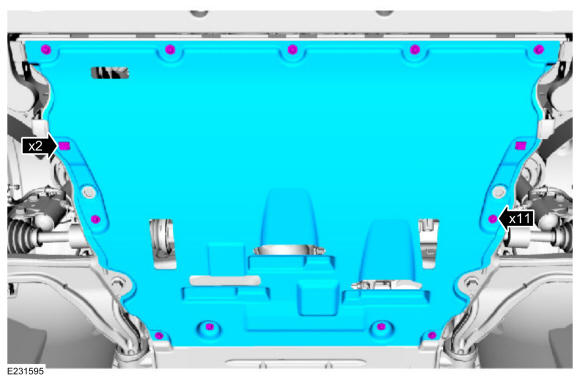

Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

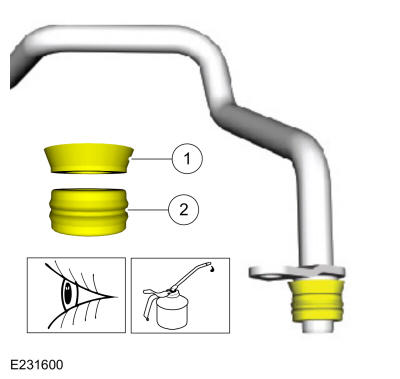

Inspect the transmission fluid cooler bypass valve-to-transmission tube backing ring and seal for damage and install new a backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

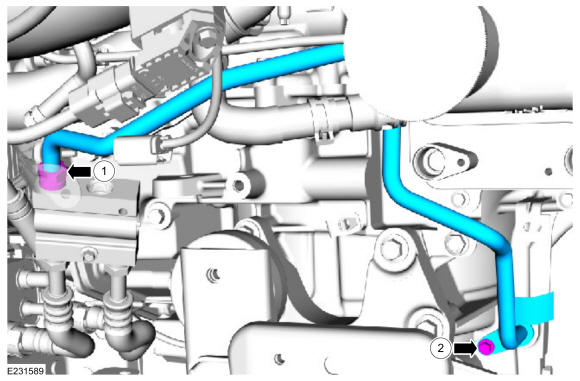

Install the cooler bypass valve-to-transmission tube.
1. Tighten the fitting.
  Torque: 16 lb.ft (22 Nm)
2. Install the bolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

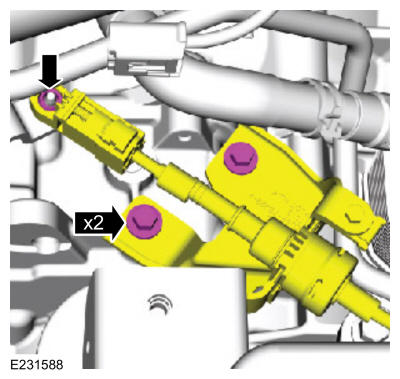

Position the selector lever cable, install the bolts and connect the cable to the transmission manual lever.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

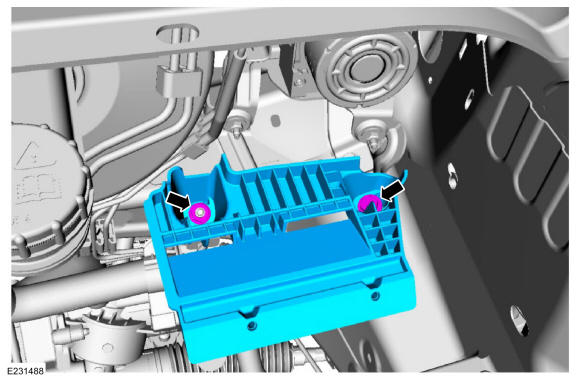

Install the battery tray support bracket, the nut and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid warmer-to-cooler bypass valve tube backing ring and seal for damage and install new a backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid warmer-to-cooler bypass valve tube, tighten the fitting and install the bolt.
1. Torque: 16 lb.ft (22 Nm)
2. Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the transmission-to-transmission fluid warmer tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY
Install the transmission-to-transmission fluid warmer tube, the studbolt and the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the ground cable terminal from the transmission-to-transmission fluid warmer tube stud bolt and install the nut.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the air cleaner at this time.

Install the battery tray. Refer to: Battery Tray .
Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 1.5L EcoBoost (118kW/160PS) - I4 .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
