Transmission Fluid Cooler - 2.0L EcoBoost (184kW/250PS) - MI4: Installation
WARNING: This page is about a different variant/trim than selected.

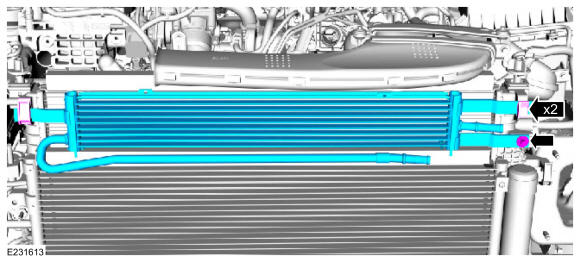

- Install the transmission fluid cooler and the bolt.
Torque: 80 lb.in (9 Nm)

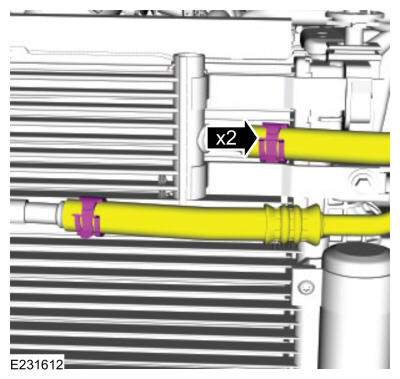

- Connect the transmission cooler hoses and position the clamps.

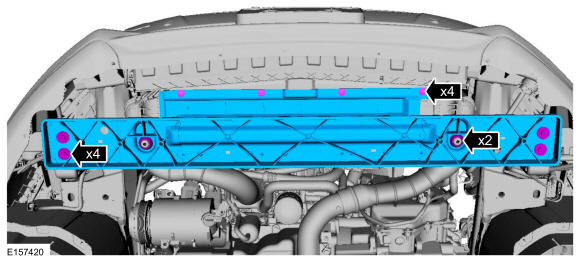

- Install the lower radiator support and the fasteners.
Torque: 18 lb.ft (24 Nm)

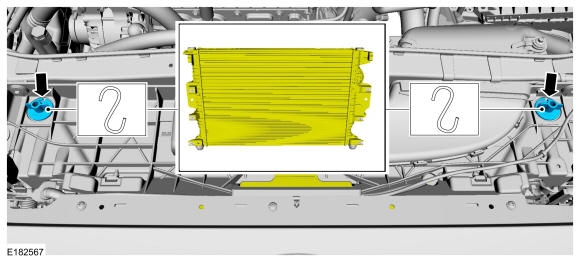

- Remove the supports and install the radiator retaining pins.
- Install the active grille shutter. Refer to: Active Grille Shutter .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
