Cooler Bypass Valve - 2.0L EcoBoost (184kW/250PS) - MI4: Installation
WARNING: This page is about a different variant/trim than selected.

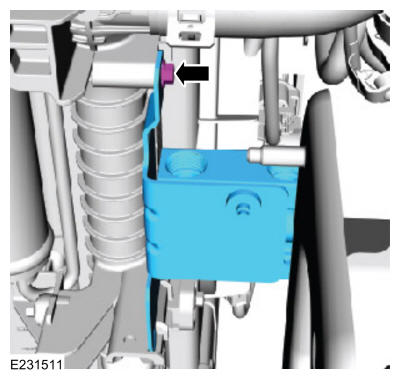

- Install the cooler bypass valve and the bolt.
Torque: 80 lb.in (9 Nm)

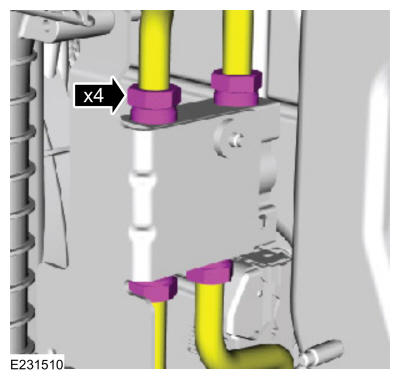

- Connect the cooler bypass valve tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)
- Install the air cleaner. Refer to: Air Cleaner .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
