Cooler Bypass Valve - 1.5L EcoBoost (110kW/150PS) - I4: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner. Refer to: Air Cleaner .

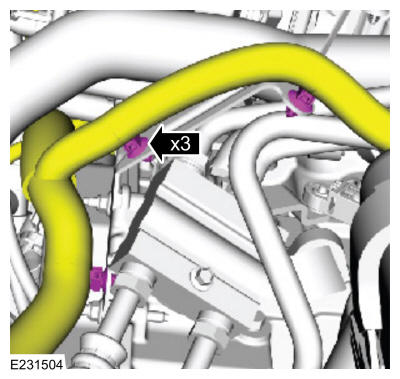

- Detach the wiring harness retainers from the cooler bypass valve bracket.
-
NOTE: Be prepared to collect escaping fluid.
Completely loosen the cooler bypass valve tube fittings.
- Remove the nuts and the cooler bypass valve.
