Transmission Cooling - 2.5L
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

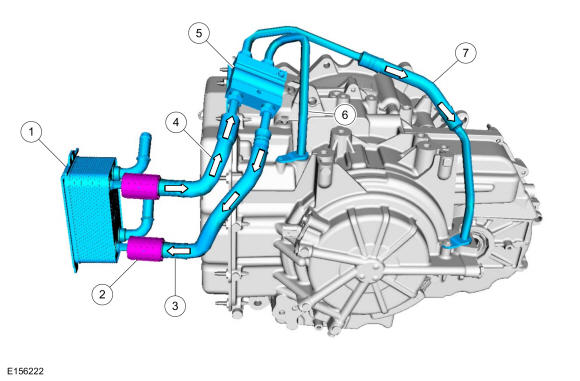

| Item |
Description |
| 1 |
Transmission fluid cooler |
| 2 |
Secondary latches |
| 3 |
Transmission fluid cooler inlet tube |
| 4 |
Transmission fluid cooler outlet tube |
| 5 |
Cooler bypass valve |
| 6 |
Transmission mounted fluid cooler inlet tube |
| 7 |
Transmission mounted fluid cooler outlet tube |
