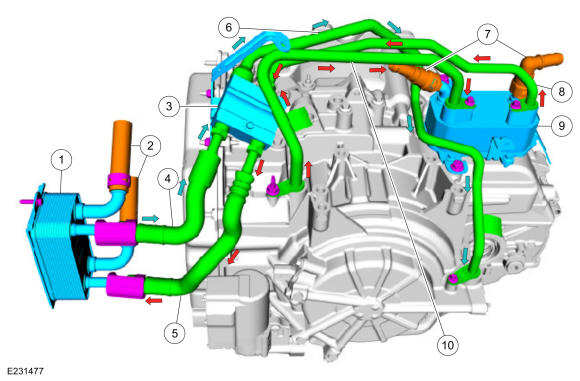

Transmission Cooling - 1.5L EcoBoost
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Transmission fluid cooler |
| 2 | Transmission fluid cooler coolant hoses |
| 3 | Cooler bypass valve |
| 4 | Transmission fluid cooler-to-cooler bypass valve tube |
| 5 | Cooler bypass valve-to-transmission fluid cooler tube |
| 6 | Cooler bypass valve-to-transmission tube |
| 7 | Transmission fluid warmer coolant quick connect couplings |
| 8 | Transmission fluid warmer-to-cooler bypass valve tube |
| 9 | Transmission fluid warmer |
| 10 | Transmission-to-transmission fluid warmer tube |
