Steering Gear: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. If installing a new steering gear, upload the PSCM configuration to the scan tool. Refer to: Module Configuration - System Operation and Component Description .
  2. Remove the front subframe. Refer to: Front Subframe - 2.7L EcoBoost (238kW/324PS) .

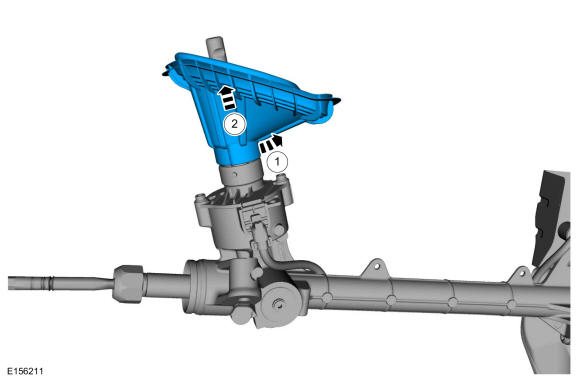

  3. Remove the steering gear boot.
    GFD479262Courtesy of FORD MOTOR COMPANY

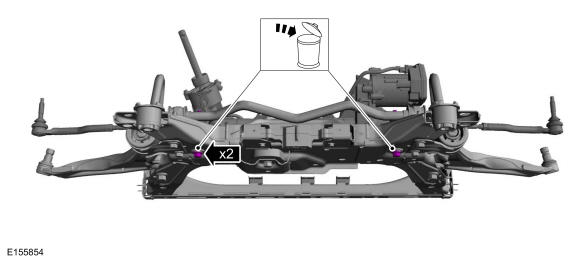

  4. Remove and discard the steering gear mounting bolts.

    Torque: 148 lb.ft (200 Nm)

    GFD479263Courtesy of FORD MOTOR COMPANY

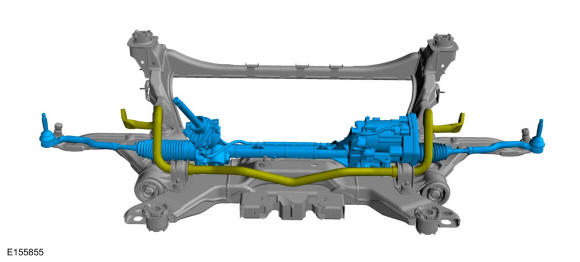

  5. Position aside the front stabilizer bar. Remove the steering gear.
GFD479264Courtesy of FORD MOTOR COMPANY
