Ignition Coil-On-Plug: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Before beginning any service procedure in this article, refer to Safety Warnings
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Health and Safety Precautions .
-
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

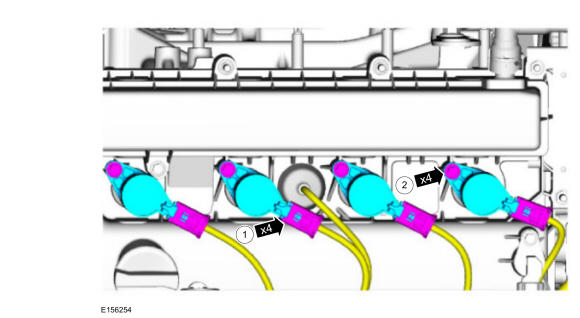

Remove the ignition coil-on-plugs.
-
NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.
Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
- Remove the ignition coil-on-plug retainers and then remove the ignition coil-on-plugs.
Torque: 71 lb.in (8 Nm)
-

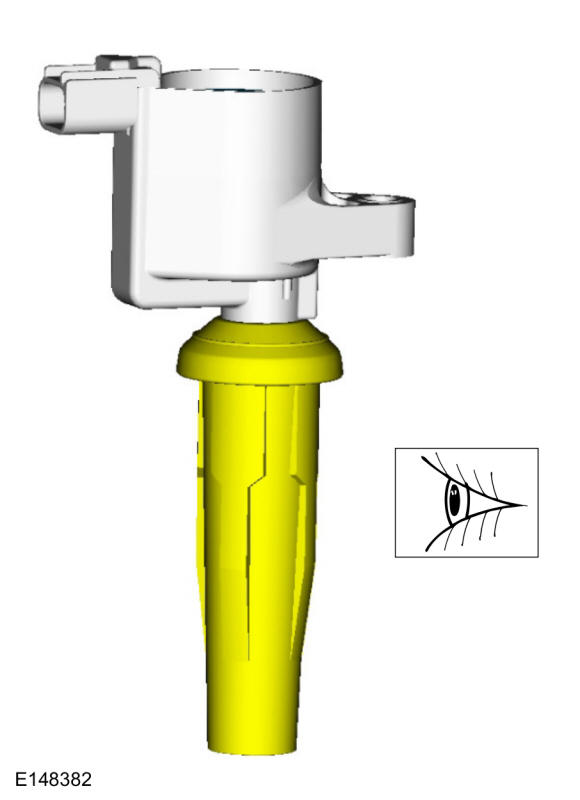

- Inspect the ignition coil-on-plug assemblies for cracks, rips, or tears and replace any damaged coil-on-plug assemblies.
