Engine Ignition - Component Location

WARNING: This page is about a different variant/trim than selected.

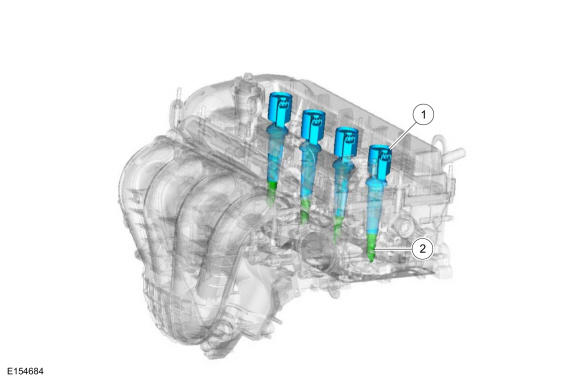

Component Location - 2.5L Duratec

GFD482109Courtesy of FORD MOTOR COMPANY
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
