Throttle Body: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that the mating faces are clean and free of foreign material.

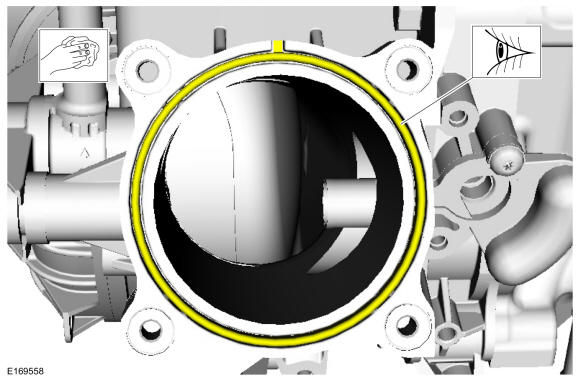

Inspect the Throttle Body (TB) gasket, clean or replace as needed.

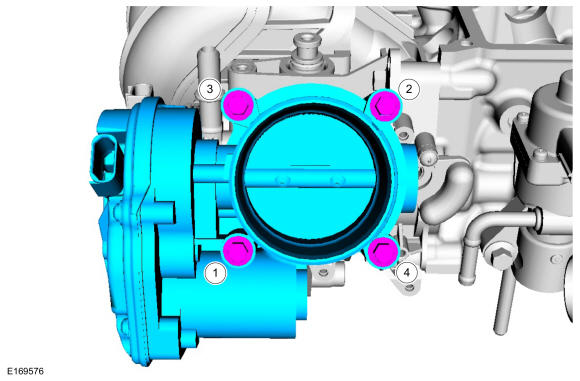

- Install the Throttle Body (TB), then install and tighten the Throttle Body (TB) retaining bolts.
Torque: 89 lb.in (10 Nm)
-

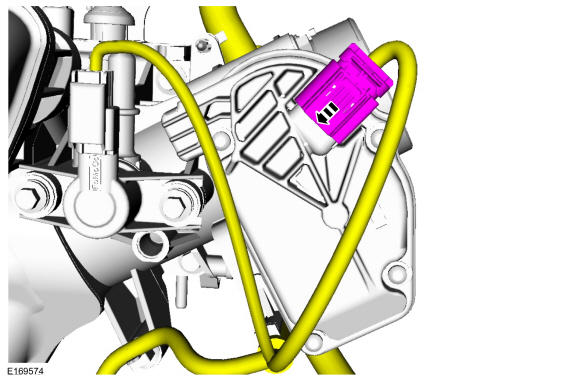

NOTE: When connecting the Throttle Body (TB) electrical connector engage the red connector locking tab after fully installing the Throttle Body (TB) electrical connector. The red tab will not slide forward unless the Throttle Body (TB) electrical connector is fully installed.
Connect the Throttle Body (TB) electrical connector.
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
