Fuel Rail: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: Make sure that 8 new fuel injector O-ring seals and 4 new fuel injector retainer clips are installed.

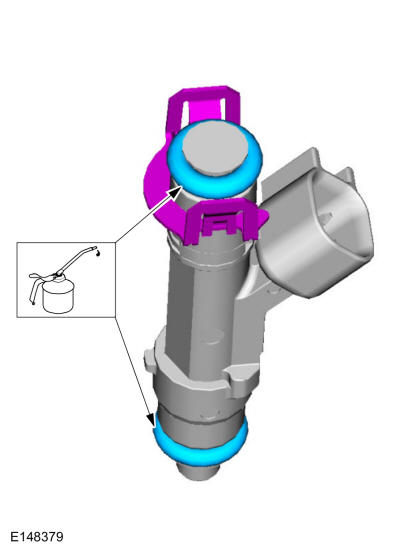

Install the new fuel injector O-ring seals and the fuel injector clips. Lubricate the new O-rings with clean engine oil.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
