Component Location - Fuel Charging and Controls

WARNING: This page is about a different variant/trim than selected.

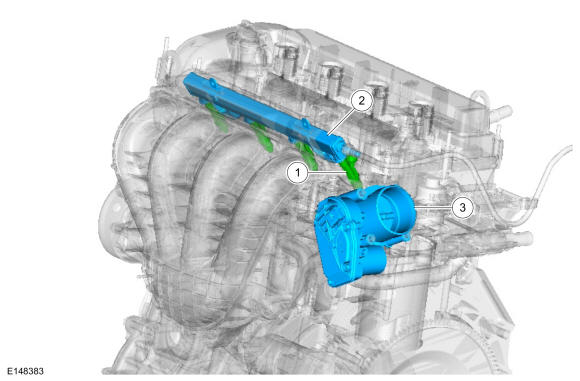

GFD481817Courtesy of FORD MOTOR COMPANY
Item Description
1 Fuel injector
2 Fuel rail
3 Throttle Body (TB)
