Thermostatic Expansion Valve - 2.7L EcoBoost (238kW/324PS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the RHF fender splash shield. Refer to: Fender Splash Shield .

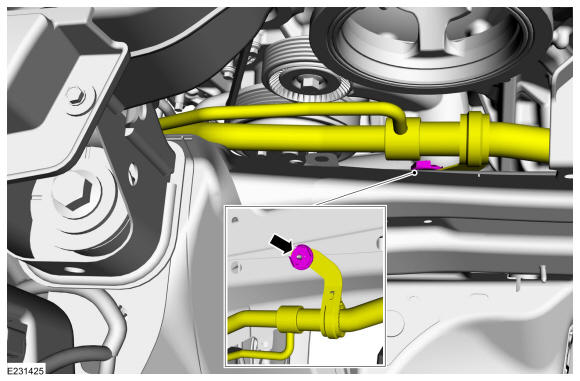

Remove the evaporator inlet and outlet manifold bracket nut.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe RH. Refer to: the appropriate information .
NOTE: Make sure that all openings are sealed.

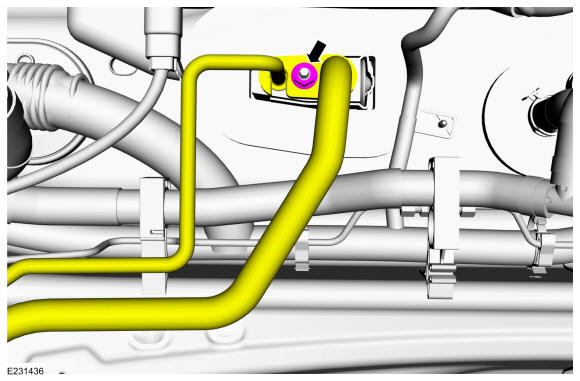

Remove the evaporator inlet and outlet manifold nut, disconnect the fitting. Discard the gasket seals.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

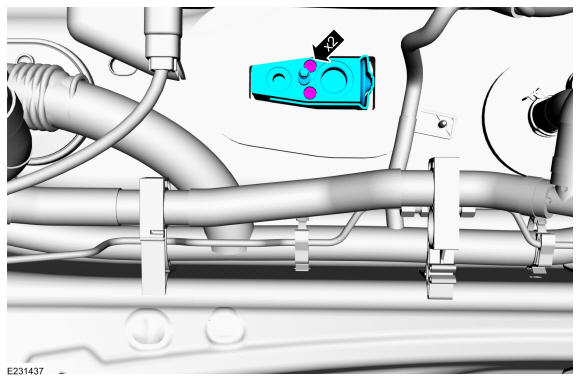

Remove the bolts and the thermostatic expansion valve. Discard the gasket seals.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
