Receiver Drier Element - 1.5L EcoBoost (118kW/160PS) - I4: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .

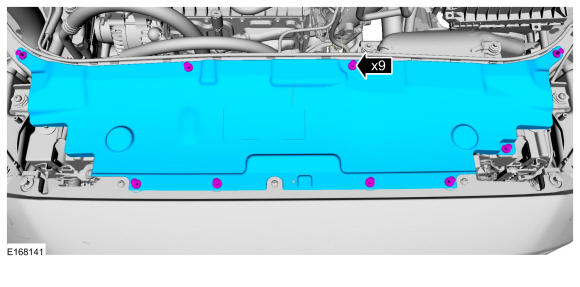

Remove the retainers and the radiator sight shield.

Courtesy of FORD MOTOR COMPANY

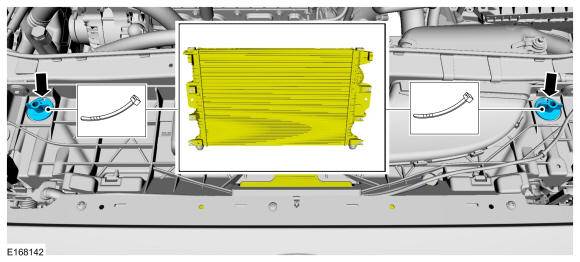

Support each side of the cooling module. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

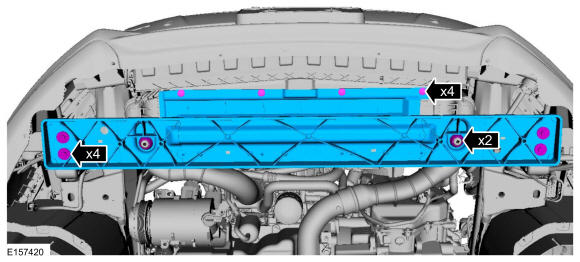

Remove the retainers, bolts, insulators and the cooling module support panel.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

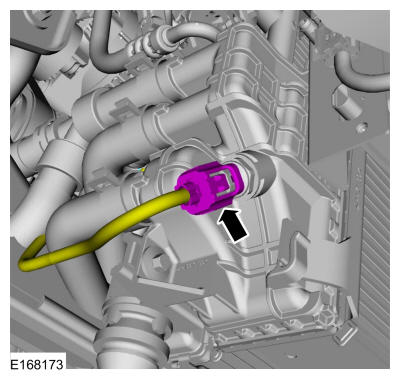

Disconnect the CAC radiator electrical connector.

Courtesy of FORD MOTOR COMPANY

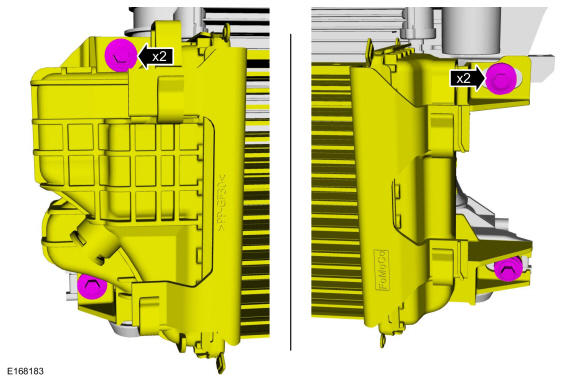

Remove the bolts and position aside the CAC radiator.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

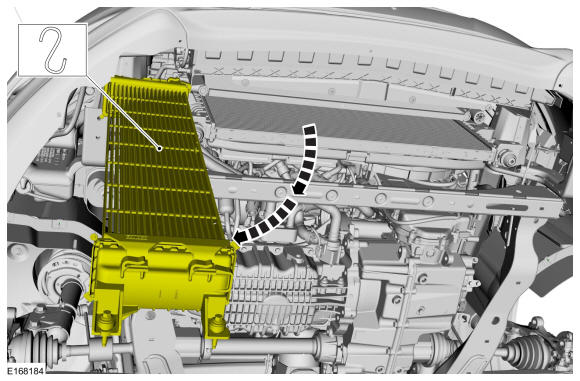

Position aside the CAC.

Courtesy of FORD MOTOR COMPANY

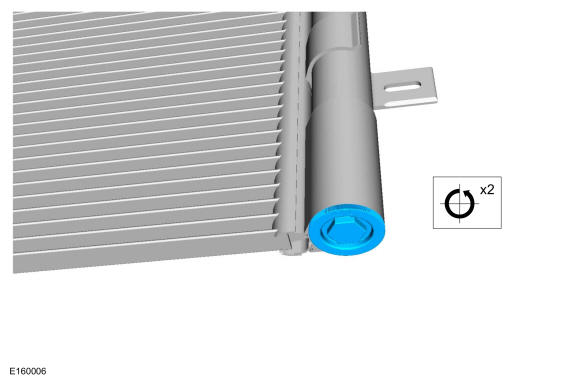

Remove the receiver drier cap. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

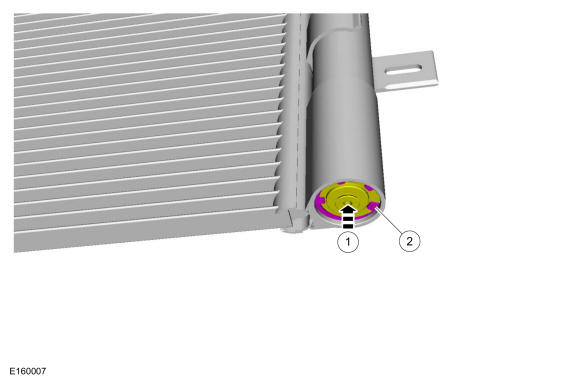

Push the receiver drier plug upwards and remove the receiver drier plug snap ring.

Courtesy of FORD MOTOR COMPANY

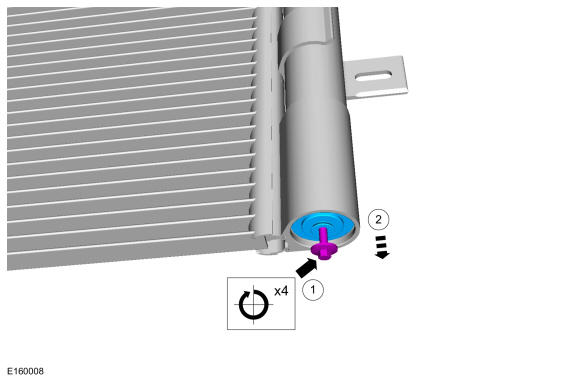

Install and tighten an M5 bolt in the center of the receiver drier plug and remove the receiver drier plug.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

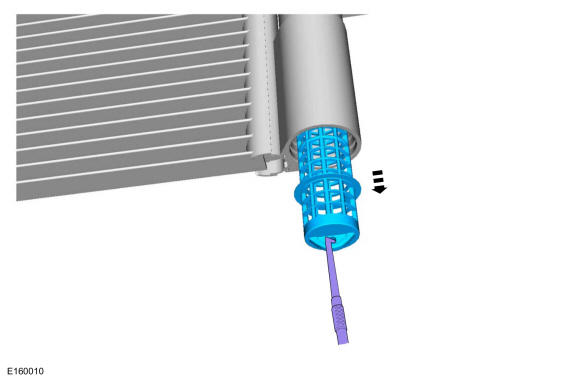

Using a pick tool, remove the receiver drier element.
- Make sure to cover any open ports to prevent debris from entering the system. Use the General Equipment: Pick Hook

Courtesy of FORD MOTOR COMPANY
