Receiver Drier - 2.5L Duratec (125kW/170PS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the bolts and the front underbody shield.

Courtesy of FORD MOTOR COMPANY

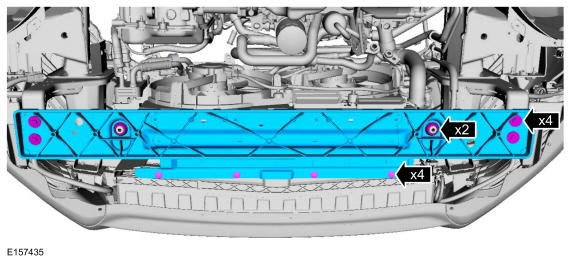

Remove the retainers, bolts, insulators and the cooling module support panel.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

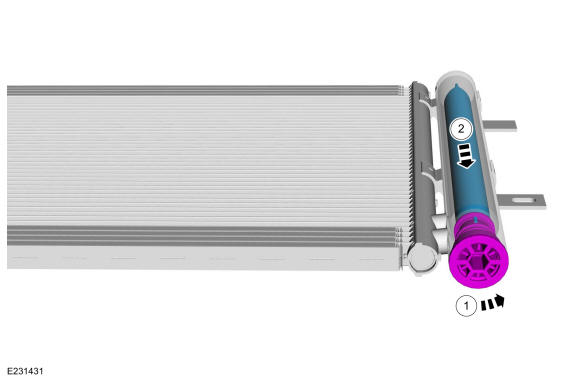

Remove the receiver drier plug and the receiver drier.
- Make sure to cover any open ports to prevent debris from entering the system.

Courtesy of FORD MOTOR COMPANY
