Receiver Drier - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Remove the condenser. Refer to: Condenser - 2.0L EcoBoost (184kW/250PS) - MI4 .

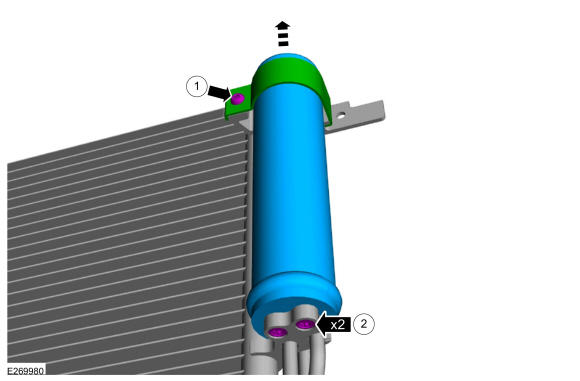

1. Remove the retainer and bracket.
2. Remove the retainers and the receiver drier.
  Torque: 44 lb.in (5 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.

Courtesy of FORD MOTOR COMPANY
