Driver Side Register: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions .

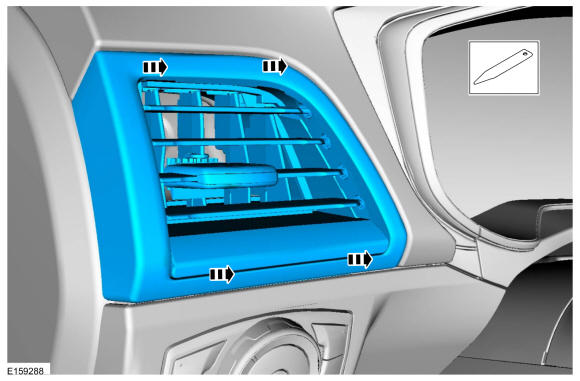

  2. Remove the driver side register assembly. Use the General Equipment: Interior Trim Remover
GFD484287Courtesy of FORD MOTOR COMPANY
