Condenser - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .
- Remove the CAC outlet pipe. Refer to: the appropriate information .
-
NOTE: Make sure that all openings are sealed.

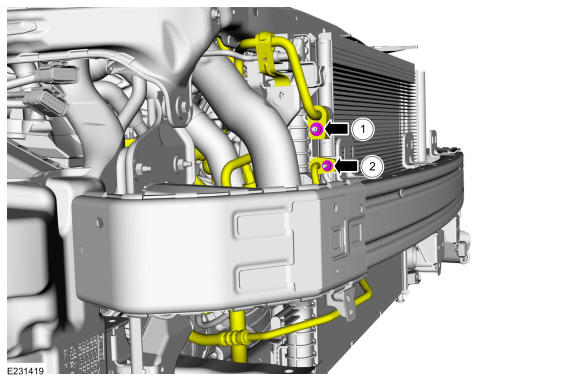

- Remove the A/C compressor outlet line nut and disconnect the fitting. Discard the O-ring seal and gasket seal.
Torque: 159 lb.in (18 Nm)
- Remove the condenser outlet line nut and disconnect the fitting. Discard the O-ring seal and gasket seal.
Torque: 80 lb.in (9 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
- Remove the A/C compressor outlet line nut and disconnect the fitting. Discard the O-ring seal and gasket seal.

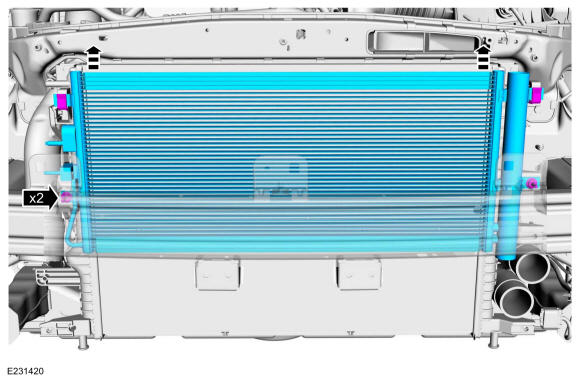

- Remove the studbolts, release the tabs and remove the condenser.
Torque: 71 lb.in (8 Nm)
