Condenser - 2.5L Duratec (125kW/170PS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the bolts and the radiator undershield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the lower radiator support.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bracket bolt and position the A/C compressor outlet line bracket aside.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

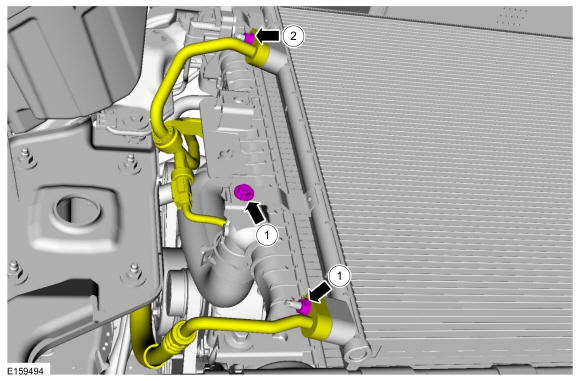

1. Remove the condenser outlet line nut, disconnect the fitting and discard the O-ring seal and gasket seal. Remove the condenser mounting bolt.
  Torque: 71 lb.in (8 Nm)
2. Remove the A/C compressor outlet line nut and disconnect the fitting. Discard the O-ring seal and gasket seal.
  Torque: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY
Remove the condenser mounting bolt.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

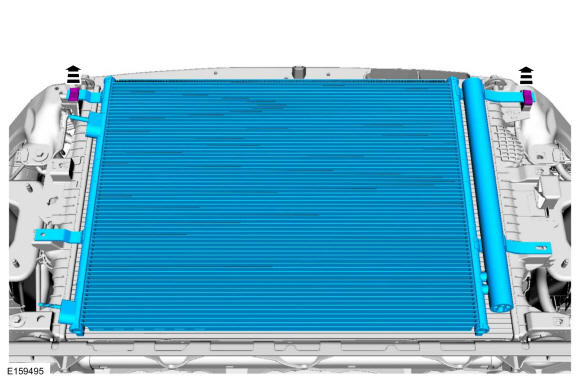

Release the tabs and remove the condenser.
