Condenser - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

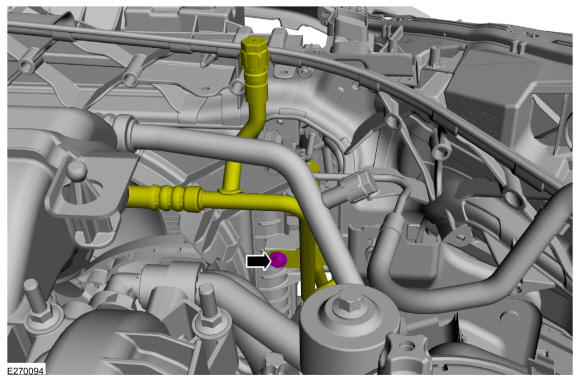

Remove the bolt and position the A/C compressor outlet line bracket aside.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

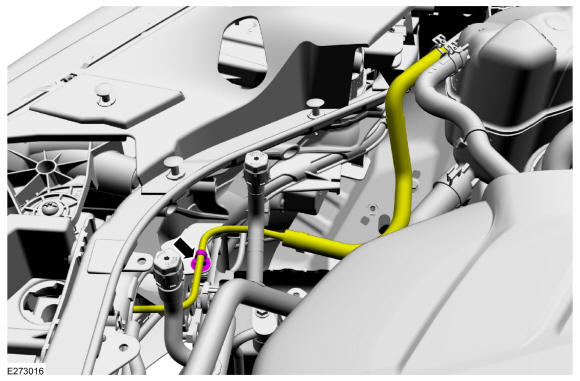

Remove the retainer and position the coolant hose aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Parts shown removed for clarity.

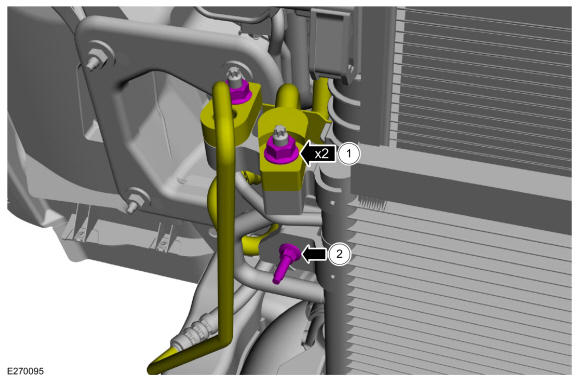

1. Remove the nuts and disconnect the fittings.
  Torque: 159 lb.in (18 Nm)
2. Remove the studbolt.
  Torque: 53 lb.in (6 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

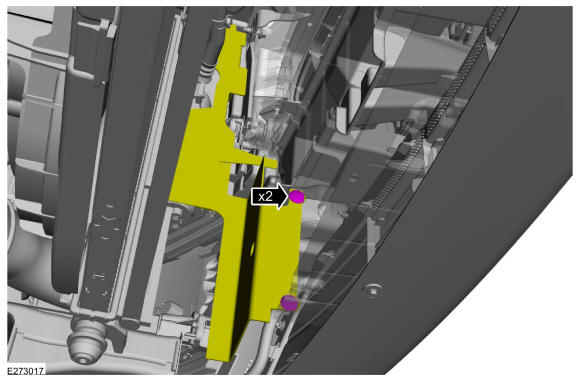

Remove the pin-type retainers and position the radiator air deflector aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Parts shown removed for clarity.

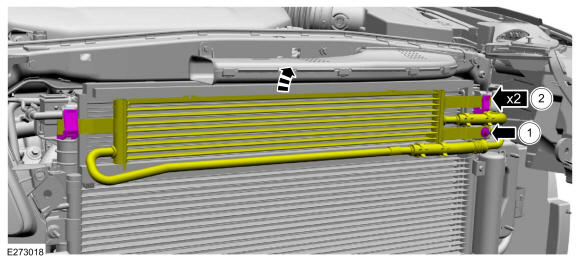

1. Loosen the bolt.
  Torque: 80 lb.in (9 Nm)
2. Release the tabs and position the transmission cooler aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Parts shown removed for clarity.

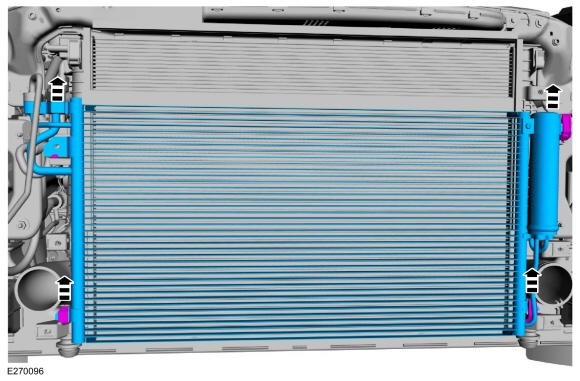

Release the tabs and remove the condenser.

Courtesy of FORD MOTOR COMPANY
