Condenser - 1.5L EcoBoost (118kW/160PS) - I4: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to the appropriate Recovery procedure in General Procedures .
- Remove the CAC radiator. Refer to: Charge Air Cooler (CAC) Radiator .

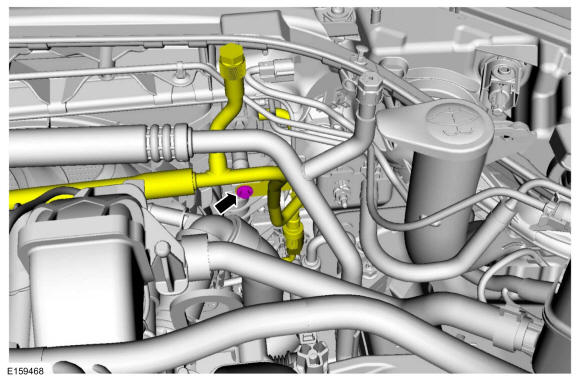

- Remove the bracket bolt and position the A/C compressor outlet line bracket aside.
Torque: 62 lb.in (7 Nm)
-
NOTE: Make sure that all openings are sealed.

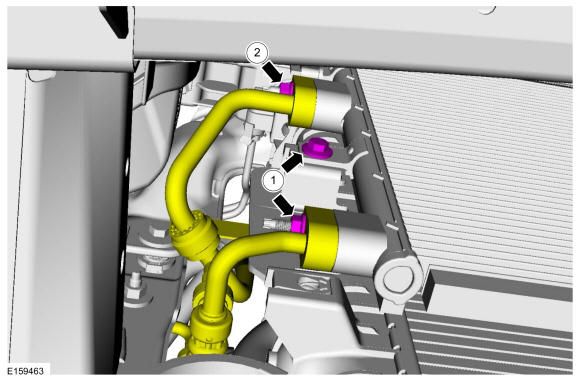

- Remove the condenser outlet line nut, disconnect the fitting and discard the O-ring seal and gasket seal. Remove the condenser mounting bolt.
Torque: 71 lb.in (8 Nm)
- Remove the A/C compressor outlet line nut and disconnect the fitting. Discard the O-ring seal and gasket seal.
Torque: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
- Remove the condenser outlet line nut, disconnect the fitting and discard the O-ring seal and gasket seal. Remove the condenser mounting bolt.

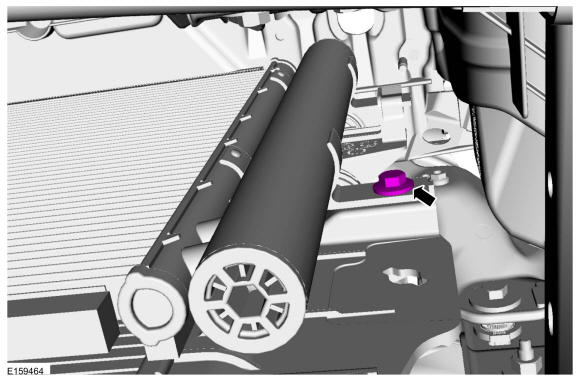

- Remove the condenser mounting bolt.
Torque: 71 lb.in (8 Nm)

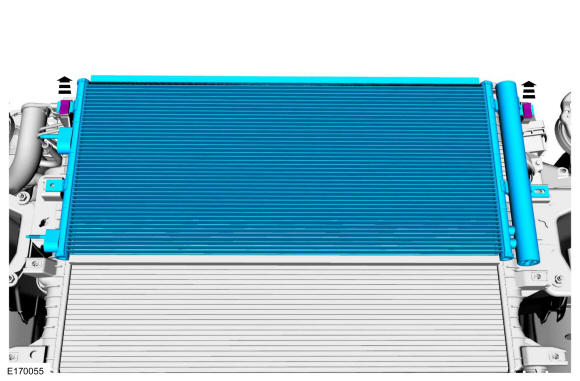

- Release the tabs and remove the condenser.
