Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .
2. Detach the wiring harness retainer, remove the nuts and the instrument panel upper brace.

   Torque: 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

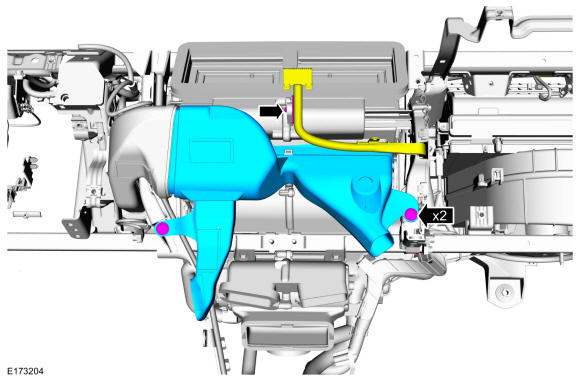

3. Detach the wiring harness retainer, remove the retainers and the center footwell vent duct.

   Courtesy of FORD MOTOR COMPANY

4. Disconnect the blower motor speed control electrical connectors.

   Courtesy of FORD MOTOR COMPANY

5. Detach the wiring harness retainers and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

6. Remove the retainer and position the wiring harness bracket aside.

   Courtesy of FORD MOTOR COMPANY

7. Remove the climate control housing bolts.

   Torque: 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Position the instrument panel wiring harness aside, remove the bolts and the climate control housing.

   Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
