Center Registers: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.
Refer to: Climate Control System Health and Safety Precautions .
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) .

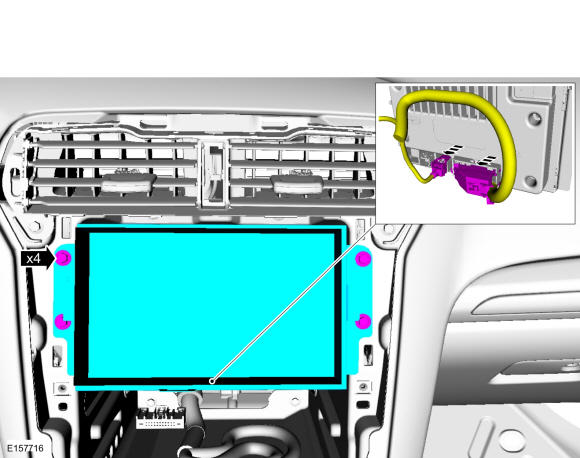

- Remove the bolts and the FDIM. Disconnect the electrical connectors.
Torque: 22 lb.in (2.5 Nm)

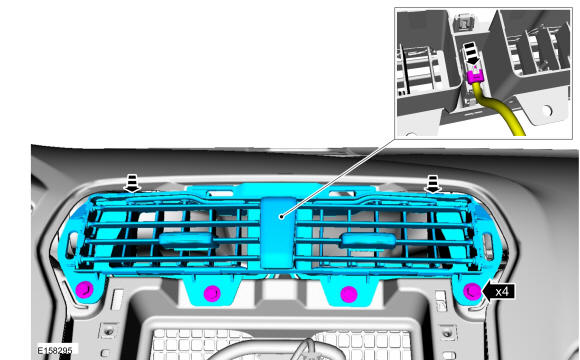

- Remove the bolts and the center register. Disconnect the electrical connector.
Torque: 22 lb.in (2.5 Nm)
