Cabin Heater Coolant Pump - 2.0L EcoBoost (177kW/240PS) - MI4: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Release the pressure in the cooling system by slowly turning the pressure relief cap one-half turn counterclockwise. When the pressure is released, remove the pressure relief cap.

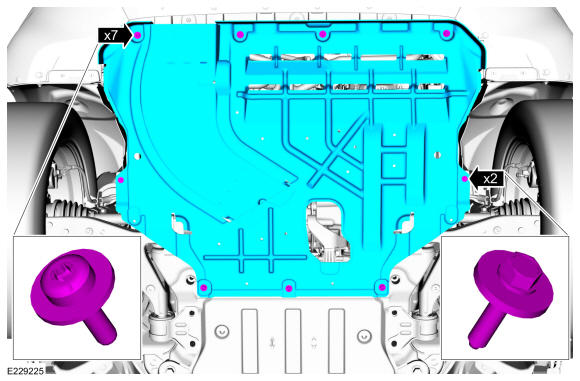

- Remove the retainers and the engine undershield.
-
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
Loosen the clamp and position the CAC tube aside.
Torque: 44 lb.in (5 Nm)
-
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
Disconnect the bypass hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
Loosen the clamp, remove the nuts and the CAC tube.
Torque: Nuts: 97 lb.in (11 Nm) Clamp: 44 lb.in (5 Nm)
-

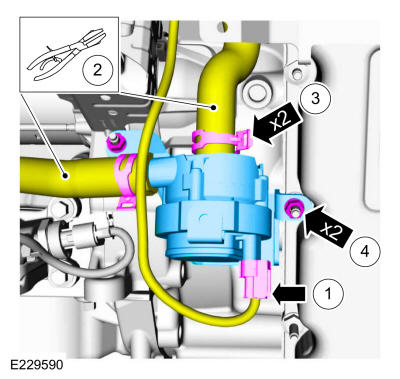

- Disconnect the electrical connector.
- Install hose clamping pliers on the heater hoses. Use the General Equipment: Hose Clamp(s)
- Release the clamps, disconnect the heater inlet and outlet hoses.
- Remove the nuts and the cabin heater coolant pump.
Torque: 89 lb.in (10 Nm)
