Cabin Heater Coolant Pump - 1.5L EcoBoost (118kW/160PS) - I4: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Release the pressure in the cooling system by slowly turning the pressure relief cap one-half turn counterclockwise. When the pressure is released, remove the pressure relief cap.

Courtesy of FORD MOTOR COMPANY
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

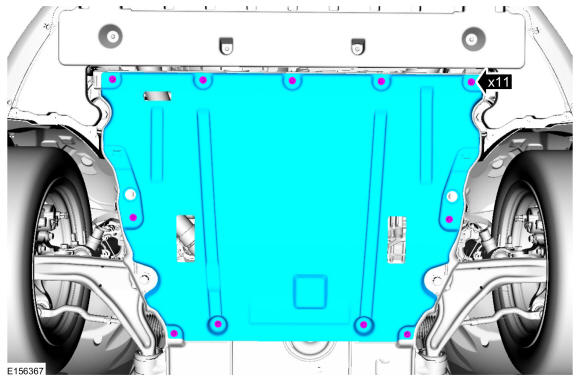

Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY

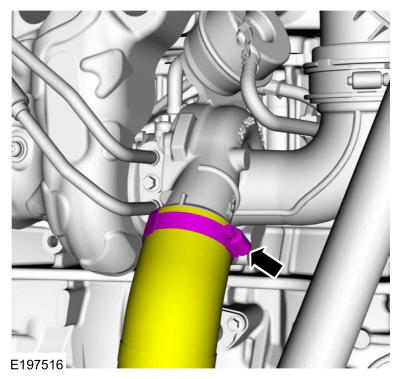

Loosen the clamp and position the CAC tube aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

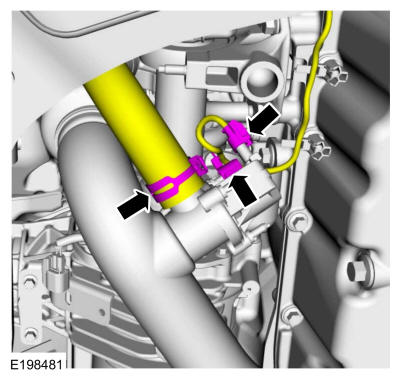

Disconnect the bypass hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

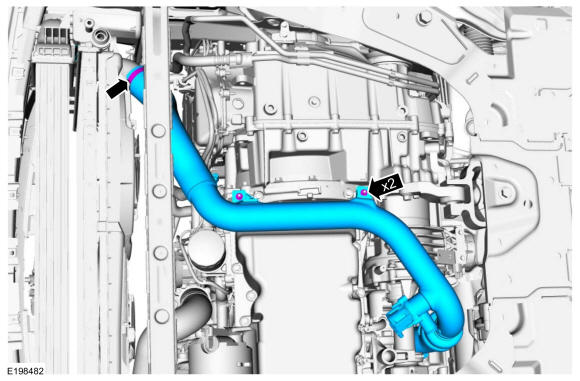

Loosen the clamp, remove the nuts and the CAC tube.
Torque: Nuts: 97 lb.in (11 Nm) Clamp: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

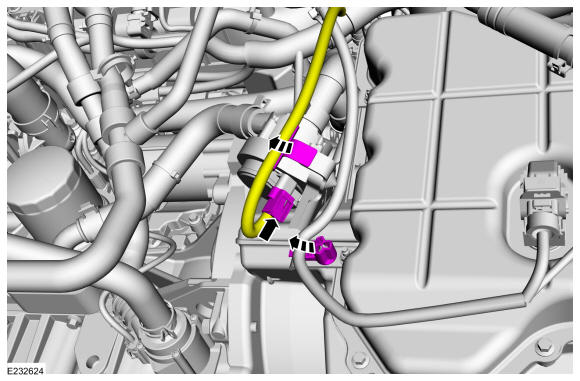

Detach the wire harness retainers and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

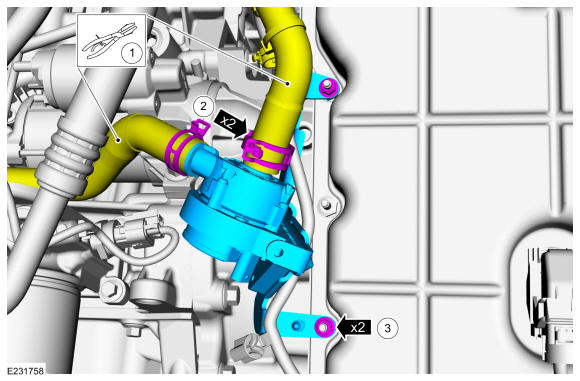

1. Install hose clamping pliers on the heater hoses. Use the General Equipment: Hose Clamp(s)
2. Release the clamps, disconnect the heater inlet and outlet hoses.
3. Remove the nuts and the cabin heater coolant pump.
  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
