Air Conditioning (A/C) Pressure Transducer - 2.7L EcoBoost (238kW/324PS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

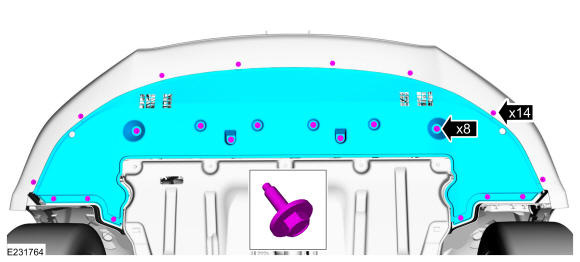

- Remove the bolts and the radiator undershield.

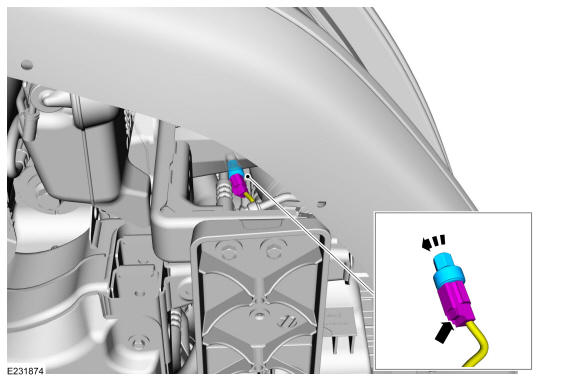

- Disconnect the electrical connector and remove the A/C pressure transducer.
Torque: 62 lb.in (7 Nm)
