Starter Motor: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the air cleaner. Refer to: Air Cleaner .
Remove the battery tray. Refer to: Battery Tray .

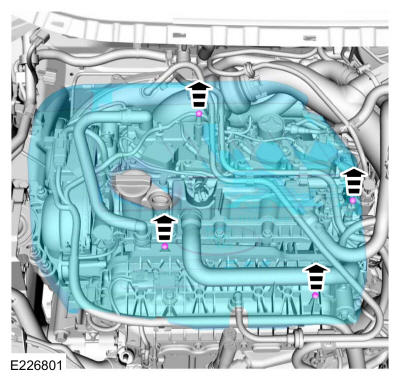

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

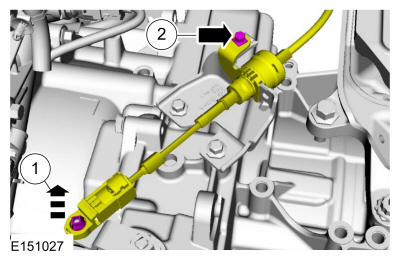

1. Disconnect the selector lever cable from the transmission controller arm.
2. Remove the selector lever cable bracket bolt and position the selector lever cable aside.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

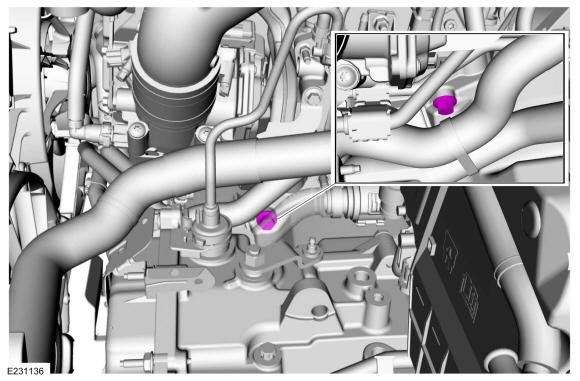

Remove the upper starter motor retaining bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

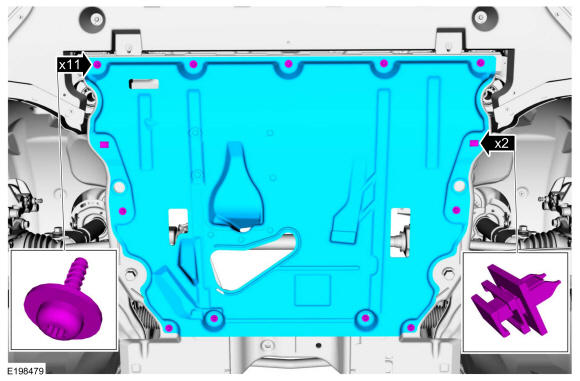

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

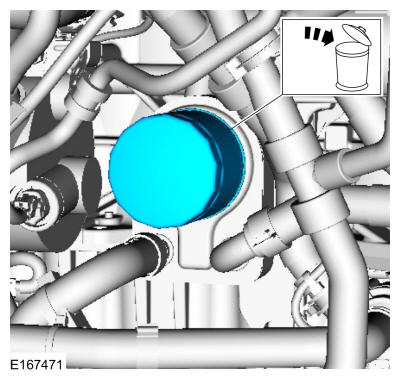

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment, Use the General Equipment: Strap Wrench

Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure.
- To diagnose mechanical concerns, Refer to: Engine . Use the General Equipment: Oil Drain Equipment

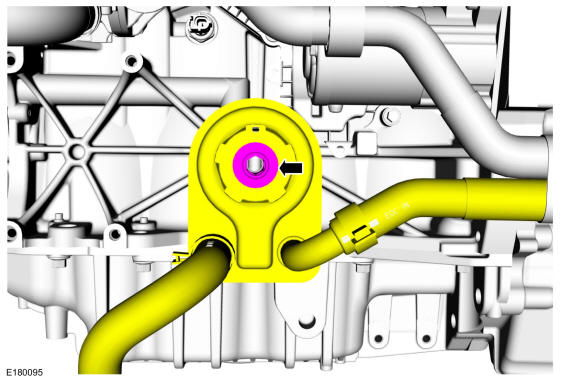

- Remove the engine oil cooler bolt and position the engine oil cooler aside.
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the engine oil cooler gasket and replace as needed.

Courtesy of FORD MOTOR COMPANY

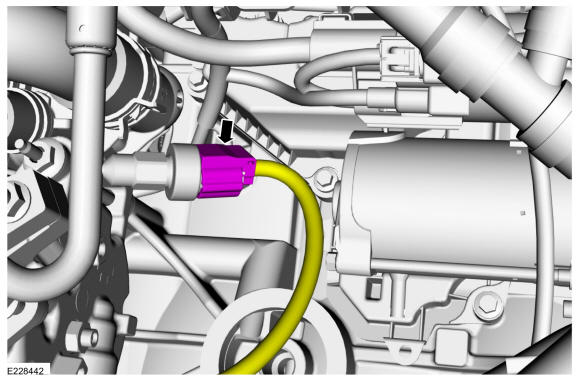

Disconnect the A/C pressure transducer electrical connector.

Courtesy of FORD MOTOR COMPANY

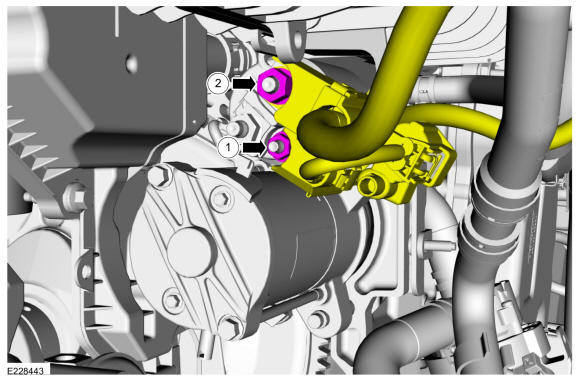

1. Remove the starter motor control wire retaining nut and disconnect the starter motor control wire at the starter motor.
  Torque: 53 lb.in (6 Nm)
2. Remove the battery positive cable retaining nut and disconnect the battery positive cable at the starter motor.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

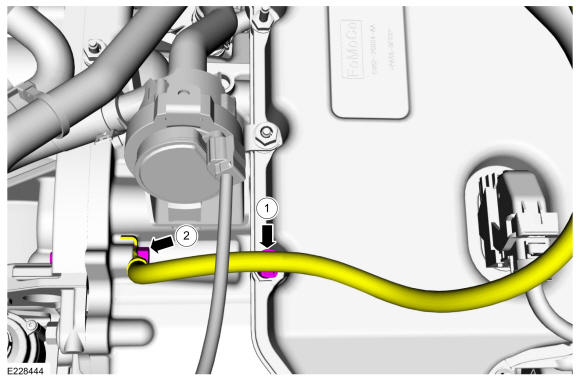

1. Detach the retainer from the studbolt.
2. Remove the ground cable bolt and position the ground cable aside.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

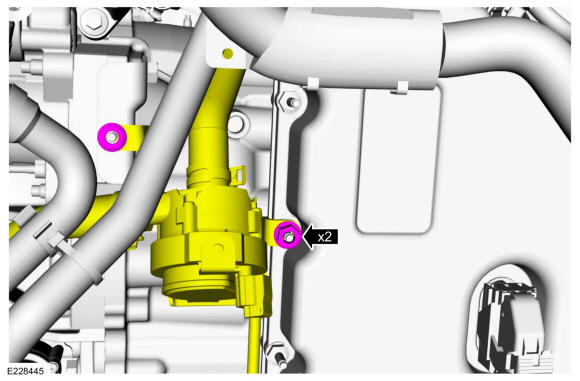

Remove the nuts from the bracket and position the cabin heater coolant pump and bracket aside.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

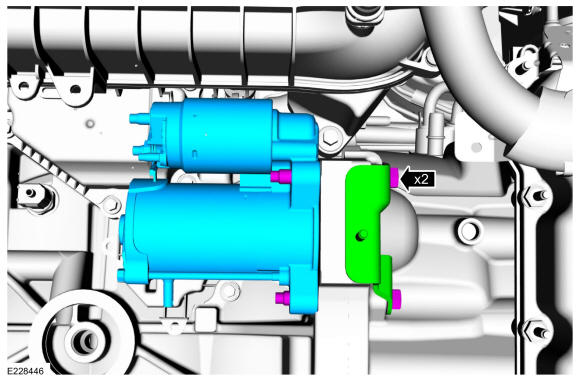

Remove the starter motor retaining bolts, bracket and the starter motor.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the starter motor drive gear and ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
