Turbine Shaft Speed (TSS) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner. For 1.5L, Refer to: Air Cleaner . For 2.0L, Refer to: Air Cleaner . For 2.5L, Refer to: Air Cleaner .

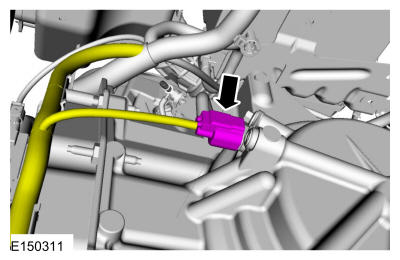

- Disconnect the TSS sensor electrical connector.

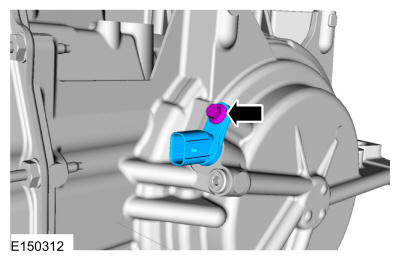

- Remove the TSS bolt and the TSS sensor.
Torque: 89 lb.in (10 Nm)
