Transmission Internal Wiring Harness Frame: Installation

WARNING: This page is about a different variant/trim than selected.

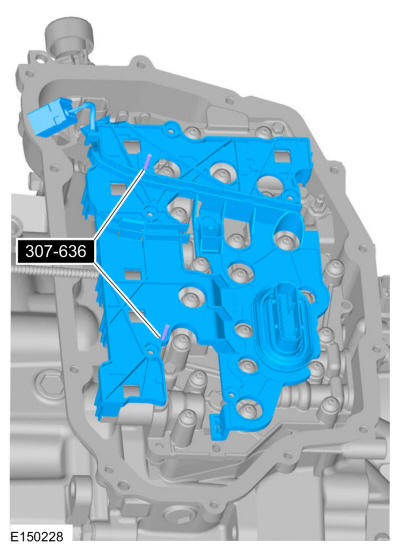

Install the special tools in the solenoid body to align the transmission internal wiring harness frame during installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.

Courtesy of FORD MOTOR COMPANY

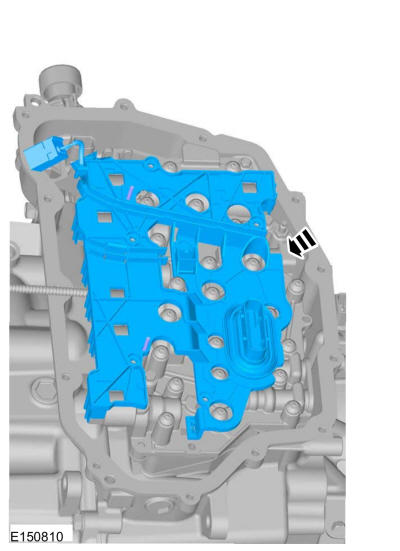

Position the transmission internal wiring harness frame on the special tools and carefully install the transmission internal wiring harness frame by pushing straight down into the solenoids.

Courtesy of FORD MOTOR COMPANY

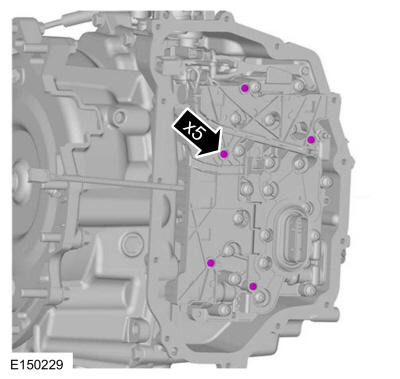

Install the transmission internal wiring harness frame screws.
Torque: 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY

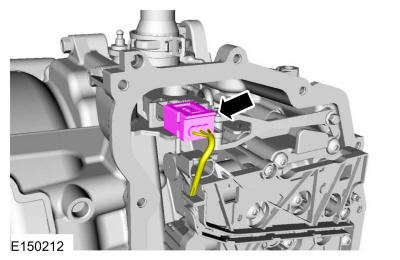

Connect the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

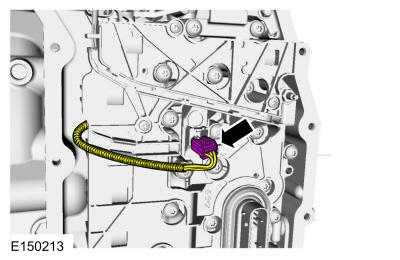

Connect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

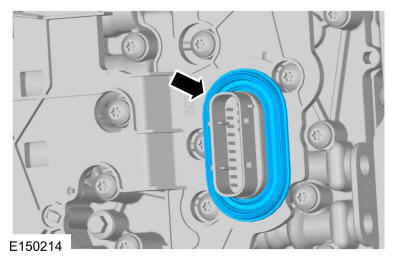

Install the main control-to-cover seal.

Courtesy of FORD MOTOR COMPANY
Install the main control cover. Refer to: Main Control Cover - 1.5L EcoBoost (118kW/160PS) - I4 . Refer to Main Control Cover - 2.0L EcoBoost (184kW/250PS) - MI4 . Refer to: Main Control Cover - 2.5L Duratec (125kW/170PS) .
