Transmission - 2.5L Duratec (125kW/170PS): Installation

WARNING: This page is about a different variant/trim than selected.

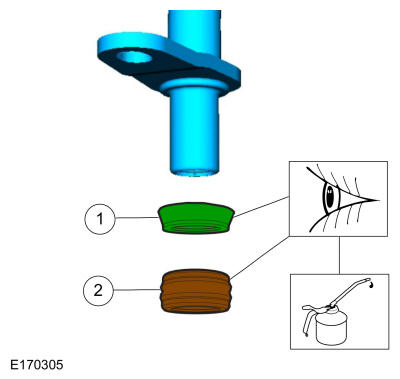

  1. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Install the backing ring (7J324)
    2. Lubricate and install the seal (7D285)

      Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    GFD482768Courtesy of FORD MOTOR COMPANY

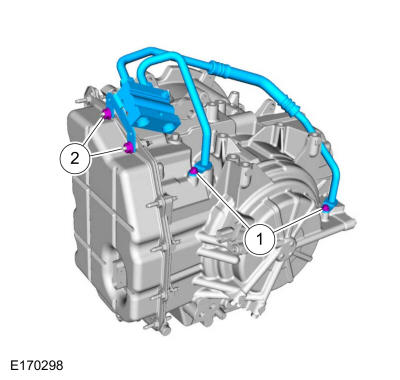

  2. Install the transmission mounted transmission fluid cooler tubes, the new bolts and the nuts.

    1. Torque

      : 97 lb.in (11 Nm)

    2. Torque

      : 80 lb.in (9 Nm)

    GFD482829Courtesy of FORD MOTOR COMPANY

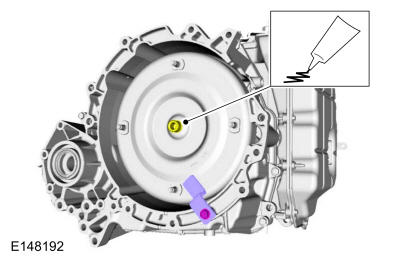

  3. Lubricate the torque converter pilot hub with Multi-Purpose Grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD482764Courtesy of FORD MOTOR COMPANY

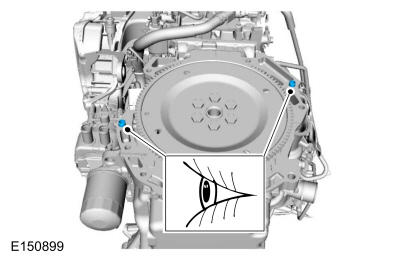

  4. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD482765Courtesy of FORD MOTOR COMPANY
  5. NOTE: Secure the transmission to the transmission jack with a safety strap.

    Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack

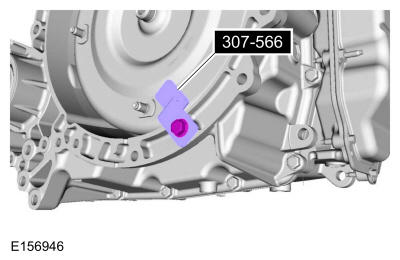

  6. NOTE: Align the torque converter index-mark made during removal.

    Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.

    GFD482763Courtesy of FORD MOTOR COMPANY

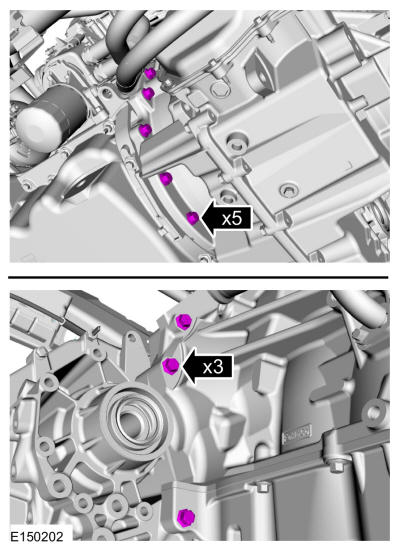

  7. Install the transmission-to-engine bolts. Use the General Equipment: Transmission Jack

    Torque: 35 lb.ft (48 Nm)

    GFD482812Courtesy of FORD MOTOR COMPANY

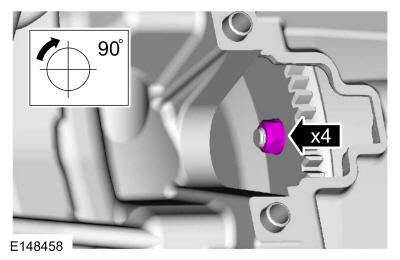

  8. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
    NOTE: The torque converter nuts are accessed from the top of the vehicle.

    Using a magnetic socket install the new torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque: 30 lb.ft (40 Nm)

    GFD482815Courtesy of FORD MOTOR COMPANY

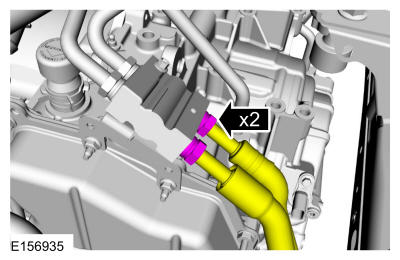

  9. Connect the transmission fluid cooler tubes.

    Torque: 22 lb.ft (30 Nm)

    GFD482827Courtesy of FORD MOTOR COMPANY

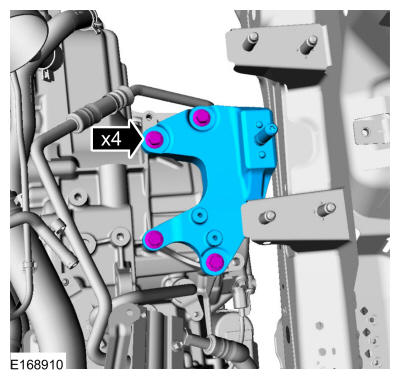

  10. Install the transmission support insulator bracket and the bolts.

    Torque: 59 lb.ft (80 Nm)

    GFD482758Courtesy of FORD MOTOR COMPANY

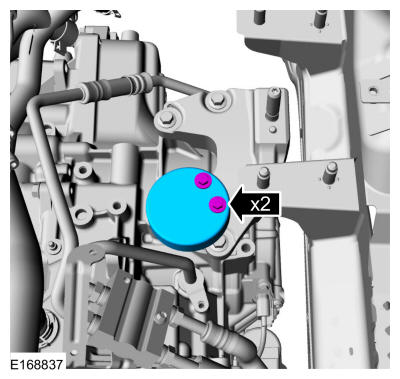

  11. Install the transmission support insulator damper and the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD482757Courtesy of FORD MOTOR COMPANY

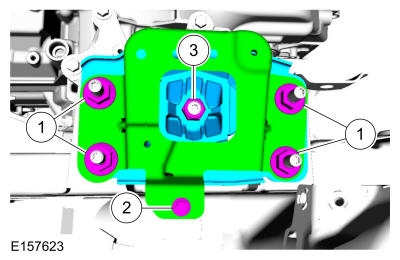

  12. Install the transmission support insulator and bracket. Apply Motorcraft® Threadlock and Sealer to the nuts.

    1. Material

      : Motorcraft® Threadlock and Sealer / TA-25-B

      Torque: 59 lb.ft (80 Nm)

    2. Torque

      : 18 lb.ft (25 Nm)

    3. Material

      : Motorcraft® Threadlock and Sealer / TA-25-B

      Torque: 98 lb.ft (133 Nm)

    GFD482770Courtesy of FORD MOTOR COMPANY

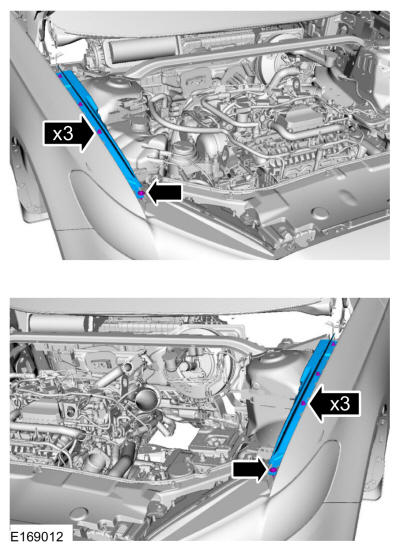

  13. Install the RH and LH filler panels and the retainers.
    GFD482754Courtesy of FORD MOTOR COMPANY

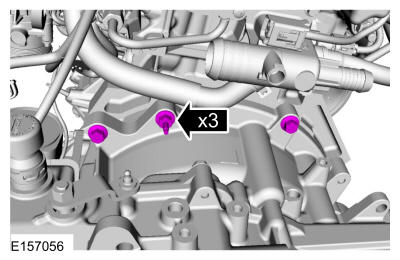

  14. Install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD482791Courtesy of FORD MOTOR COMPANY

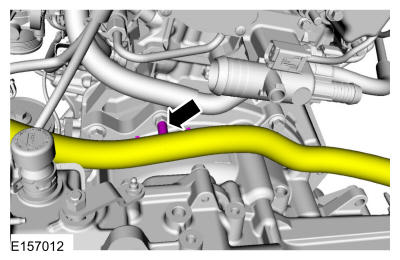

  15. Connect the wiring harness retainer.
    GFD482790Courtesy of FORD MOTOR COMPANY

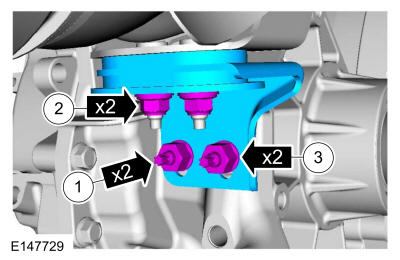

  16. Install the catalytic converter support bracket, the studs and the nuts.

    1. Torque

      : 71 lb.in (8 Nm)

    2. Torque

      : 18 lb.ft (25 Nm)

    3. Torque

      : 18 lb.ft (25 Nm)

    GFD482830Courtesy of FORD MOTOR COMPANY

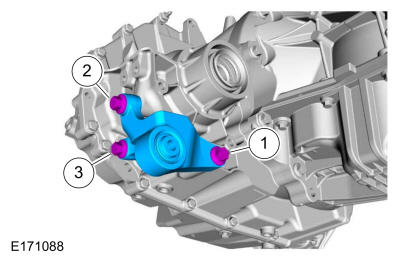

  17. NOTE: Tighten in the sequence shown.

    Install the roll restrictor bracket and the bolts.

    Torque: 92 lb.ft (125 Nm)

    GFD482820Courtesy of FORD MOTOR COMPANY

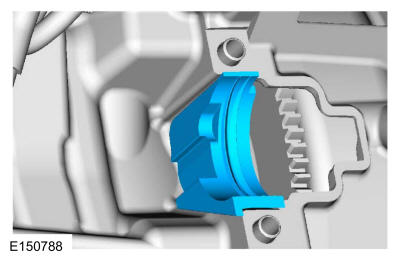

  18. Install the starter insulator.
    GFD482801Courtesy of FORD MOTOR COMPANY
  19. Install the starter motor. Refer to: Starter Motor .

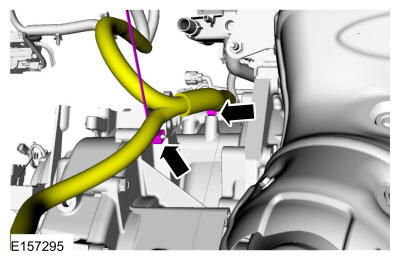

  20. Connect the wiring harness retainers.
    GFD482825Courtesy of FORD MOTOR COMPANY

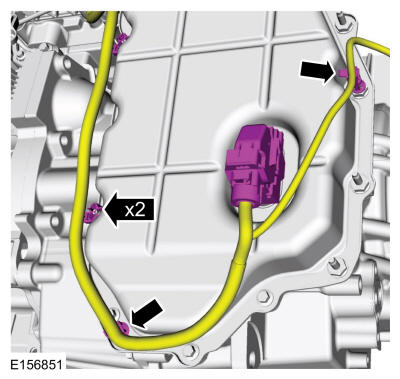

  21. Connect the transmission electrical connector and the wiring harness retainers.
    GFD482679Courtesy of FORD MOTOR COMPANY
  22. Install the new inner halfshaft retaining circlip.
    GFD482776Courtesy of FORD MOTOR COMPANY
  23. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. Refer to: Halfshaft Seal LH .

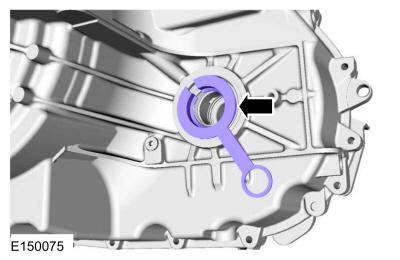

  24. Install the special tool.
    GFD482777Courtesy of FORD MOTOR COMPANY

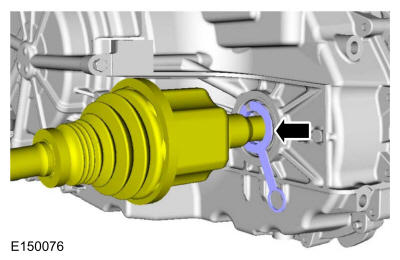

  25. NOTE: Do not fully install shaft at this time.

    Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.

    GFD482778Courtesy of FORD MOTOR COMPANY

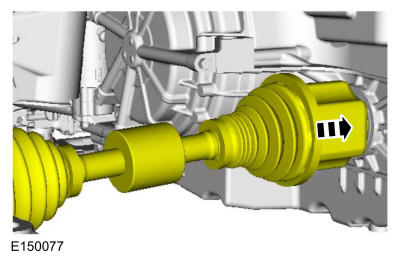

  26. NOTE: When seated correctly, the halfshaft bearing retaining clip can be felt as it snaps into the differential side gear groove.

    Insert the halfshaft until the halfshaft retaining clip is fully seated.

    GFD482779Courtesy of FORD MOTOR COMPANY
    1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.
    GFD482780Courtesy of FORD MOTOR COMPANY
  27. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD .

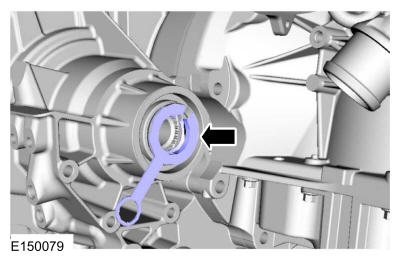

  28. Install the seal protector.
    GFD482781Courtesy of FORD MOTOR COMPANY

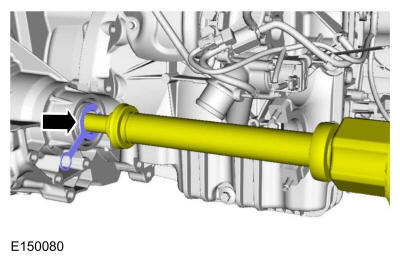

  29. NOTE: Remove the seal protector before completely installing the halfshaft.

    Install the halfshaft through the seal protector.

    GFD482782Courtesy of FORD MOTOR COMPANY

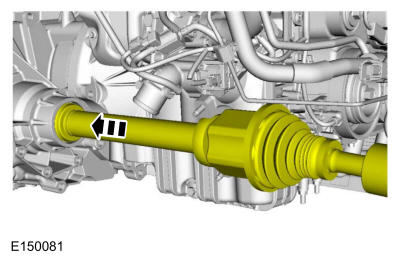

  30. Remove the special tool and insert the halfshaft until the intermediate shaft bearing is centered in the intermediate shaft bracket.
    GFD482783Courtesy of FORD MOTOR COMPANY

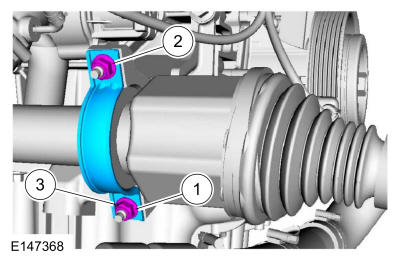

  31. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 18 lb.ft (25 Nm) | Stage 3: 18 lb.ft (25 Nm)

    GFD482784Courtesy of FORD MOTOR COMPANY
  32. Install the front subframe. Refer to: Front Subframe - 1.5L EcoBoost (118kW/160PS) - I4 2.0L EcoBoost (184kW/250PS) - MI4 2.5L Duratec (125kW/170PS) .

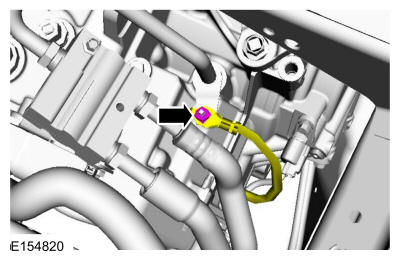

  33. Install the ground cable and the nut.

    Torque: 80 lb.in (9 Nm)

    GFD482675Courtesy of FORD MOTOR COMPANY

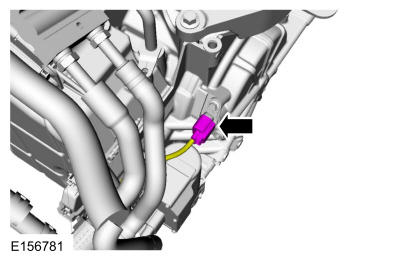

  34. Connect the TSS sensor electrical connector.
    GFD482735Courtesy of FORD MOTOR COMPANY

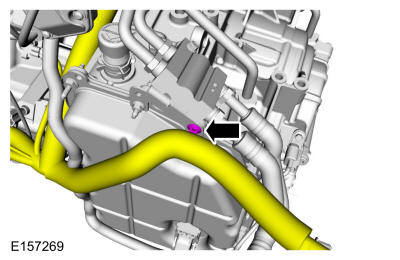

  35. Connect the wiring harness retainer.
    GFD482824Courtesy of FORD MOTOR COMPANY

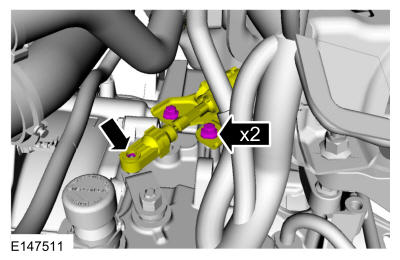

  36. Install the selector lever cable bracket and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD482733Courtesy of FORD MOTOR COMPANY
  37. Install the following items:

    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner Outlet Pipe .
    3. Refer to: Air Cleaner .

  38. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 2.5L Duratec (125kW/170PS) .
  39. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
  40. After completing the repairs perform the Misfire Monitor Neutral Profile Correction procedure.
  41. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
