Transmission - 1.5L EcoBoost (118kW/160PS) - I4: Removal

WARNING: This page is about a different variant/trim than selected.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Refer to: Battery Tray .
2. Refer to: Air Cleaner Outlet Pipe .
Disconnect the selector lever cable end from the manual control lever, remove the bracket bolts and position aside the selector lever cable and bracket.

Courtesy of FORD MOTOR COMPANY
Disconnect the retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY
Remove the upper transmission-to-engine bolts.

Courtesy of FORD MOTOR COMPANY
Disconnect the TSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the nut and the ground cable.

Courtesy of FORD MOTOR COMPANY
Remove the front subframe. Refer to: Front Subframe - 1.5L EcoBoost (118kW/160PS) - I4 2.0L EcoBoost (184kW/250PS) - MI4 2.5L Duratec (125kW/170PS) .
NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

Remove the drain plug and drain the transmission. Install the drain plug.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the halfshaft bracket and the nuts.

Courtesy of FORD MOTOR COMPANY
Position the RH halfshaft aside and support with a length of mechanics wire.

Courtesy of FORD MOTOR COMPANY
Using the special tools, separate the LH halfshaft from the transmission. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 205-241 (T86P-3514-A) Remover, Halfshaft, 205-290 (T89P-3415-B) Remover, Halfshaft (Plate).

Courtesy of FORD MOTOR COMPANY
Position the LH halfshaft aside and support with a length of mechanics wire.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

Auto-Start-Stop
Disconnect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the bolts and position aside the CAC coolant pump.

Courtesy of FORD MOTOR COMPANY
Disconnect the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Remove the starter motor. Refer to: Starter Motor .
Remove the stater motor insulator.

Courtesy of FORD MOTOR COMPANY

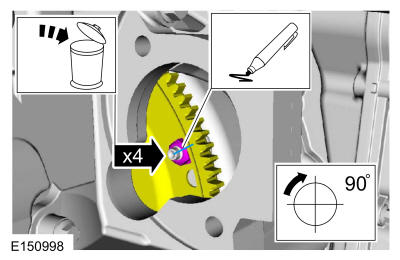

NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

NOTE: Index mark one stud and the flexplate for assembly reference.

Using a magnetic socket, remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the bracket.

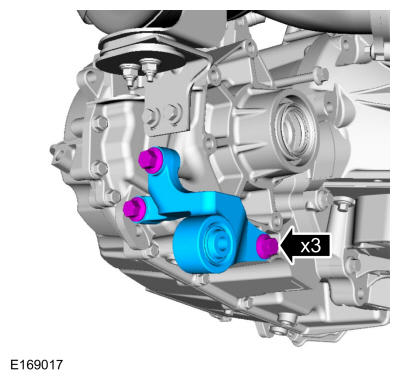

If necessary, remove the bolts and the roll restrictor bracket.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and bolts and the catalytic converter bracket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid warmer bracket nut.

Courtesy of FORD MOTOR COMPANY
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

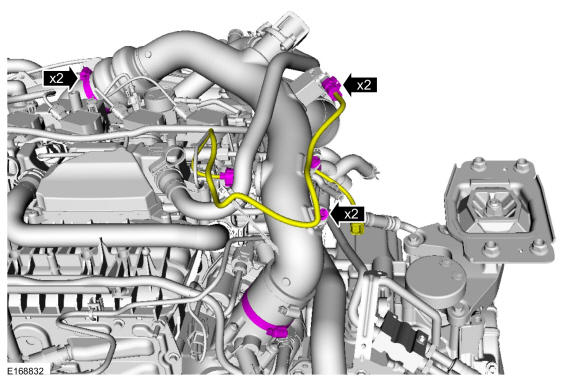

Loosen the clamps, disconnect the electrical connectors and the harness retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

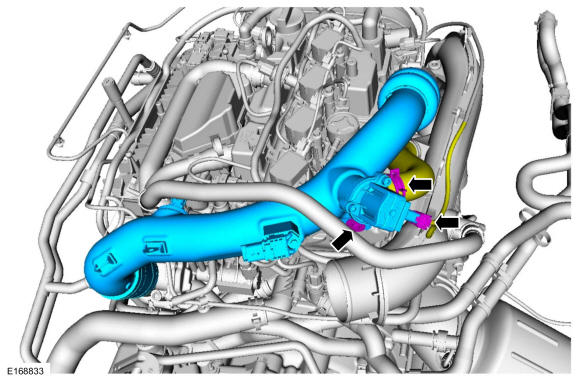

Disconnect the electrical connector and hose, remove the bolt and the CAC tube.

Courtesy of FORD MOTOR COMPANY

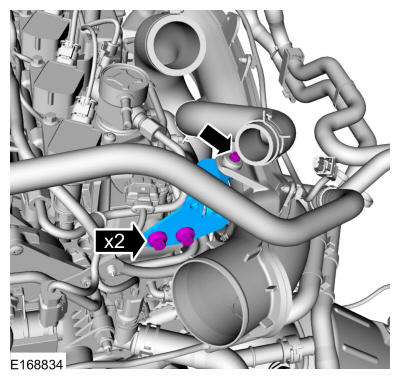

Remove the bolts and the bracket.

Courtesy of FORD MOTOR COMPANY

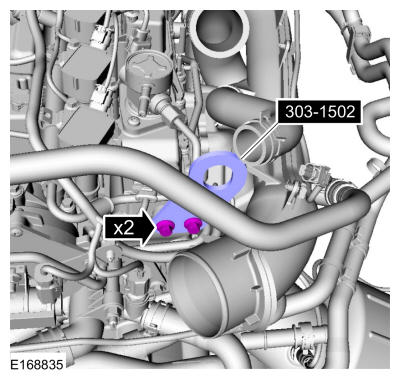

Install the special tool. Use Special Service Tool: 303-1502 Lifting Device Engine.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the RH and LH filler panels.

Courtesy of FORD MOTOR COMPANY

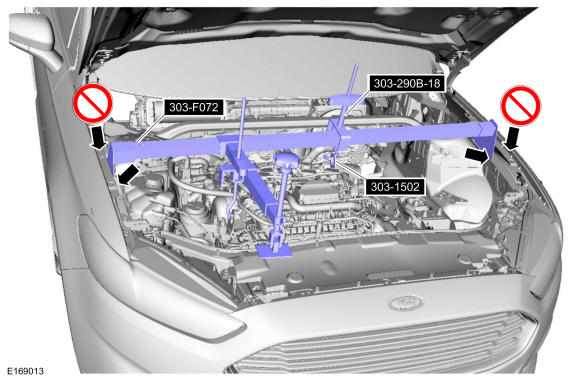

Using the special tools, support the engine. Use Special Service Tool: 303-F072 Support Bar, Engine, 303-290B-18 Adapter for 303-290B, 303-1502 Lifting Device Engine.

Courtesy of FORD MOTOR COMPANY
Remove and the bolt and nuts, remove the bracket and the transmission support insulator.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the transmission support insulator damper.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the transmission support insulator bracket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler bypass bracket nuts.

Courtesy of FORD MOTOR COMPANY

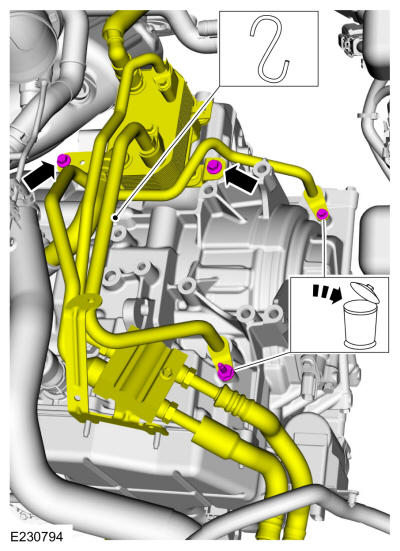

Remove and discard the transmission fluid cooler tube bolts, and remove the transmission fluid warmer bolts.

Courtesy of FORD MOTOR COMPANY
Inspect the transmission case to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission case. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Secure the transmission to the transmission jack with a safety strap.

Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack
NOTE: The transmission-to-engine bolts differ in length. Mark the bolts for correct installation.

Remove the transmission-to-engine bolts.

Courtesy of FORD MOTOR COMPANY
Separate the transmission from the engine and install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Clean the transmission-mounted transmission fluid cooler tubes by hand. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
