Transmission - 1.5L EcoBoost (118kW/160PS) - I4: Installation

All vehicles

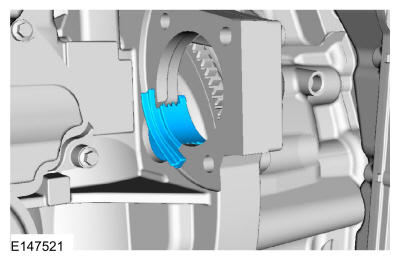

1. Lubricate the torque converter pilot hub with Multi-Purpose Grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Secure the transmission to the transmission jack with a safety strap.

   Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack

4. Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

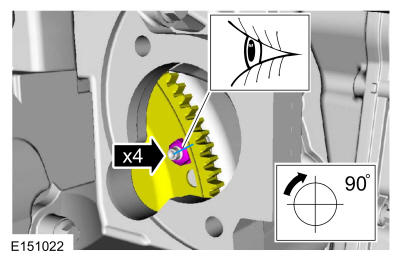

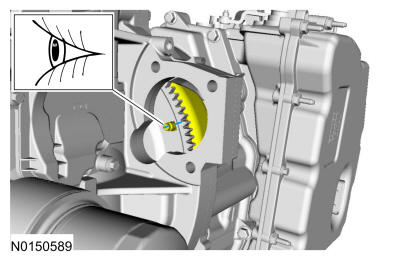

5. Align the index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Install the different length bolts in the correct locations as noted during removal.

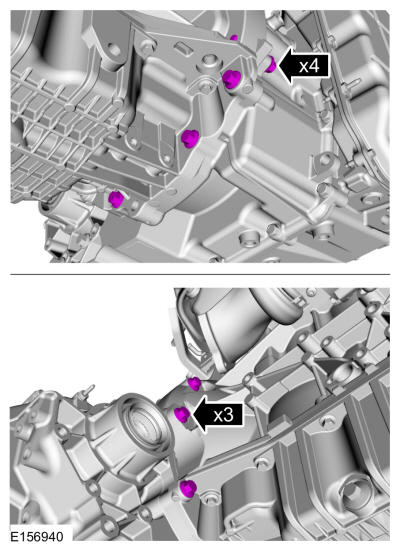

   Install the transmission-to-engine bolts. Use the General Equipment: Transmission Jack

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
   NOTE: The torque converter nuts are accessed from the top of the vehicle.

   Using a magnetic socket install the new torque converter nuts. Use the General Equipment: Magnetic Socket

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the CAC coolant pump bolts.

   Torque: 17 lb.ft (23 Nm)

   Courtesy of FORD MOTOR COMPANY

9. NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
   1. Install the backing ring (7J324)
   2. Lubricate and install the seal (7D285)

      Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

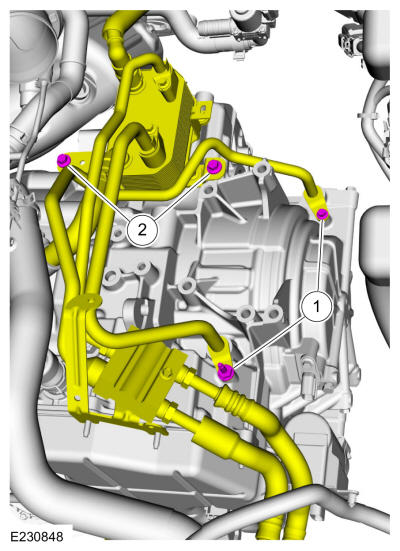

10. 1. Install the new transmission fluid cooler tube bolts.

       Torque: 89 lb.in (10 Nm)

    2. Install the transmission fluid warmer and the bolts.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the transmission fluid cooler bypass bracket nuts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

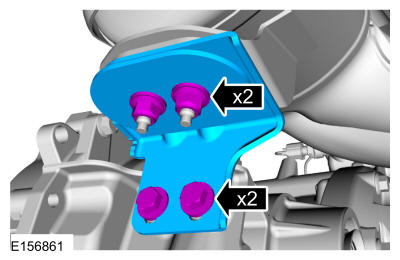

12. Install the transmission support insulator bracket and the bolts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the transmission support insulator damper and the bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Install the transmission support insulator and bracket. Apply Motorcraft® Threadlock and Sealer to the nuts.
    1. Material

       : Motorcraft® Threadlock and Sealer / TA-25-B

       Torque: 59 lb.ft (80 Nm)

    2. Torque

       : 18 lb.ft (25 Nm)

    3. Material

       : Motorcraft® Threadlock and Sealer / TA-25-B

       Torque: 98 lb.ft (133 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the RH and LH filler panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

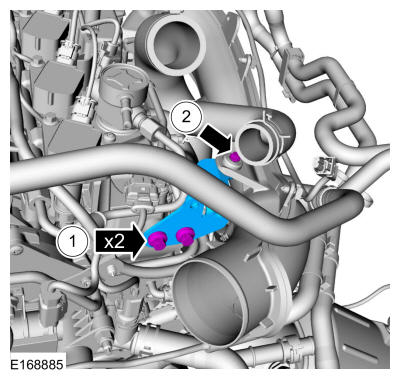

16. Install the bracket and the bolts.
    1. Torque

       : 97 lb.in (11 Nm)

    2. Torque

       : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

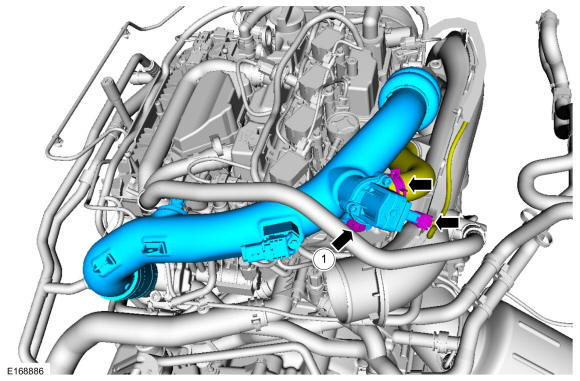

17. Install the CAC tube and bolt, connect the electrical connector and the hose.
    1. Torque

       : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

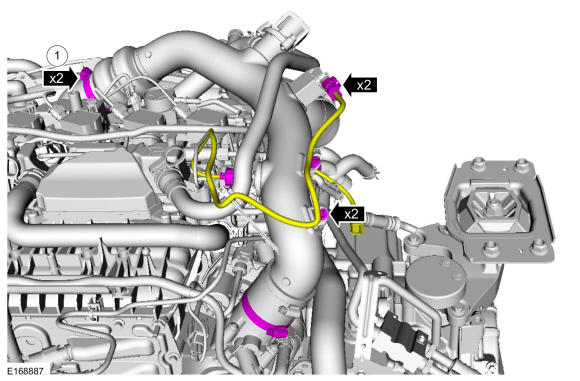

18. Tighten the CAC tube clamps, connect the electrical connectors and the retainers.
    1. Torque

       : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

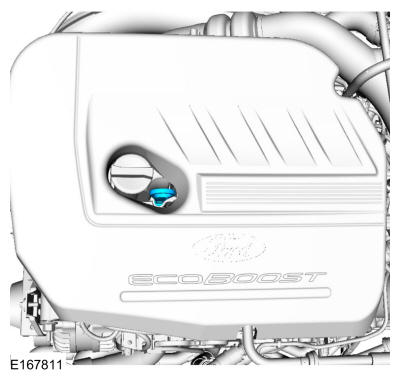

19. Install the engine appearance cover.

    Courtesy of FORD MOTOR COMPANY

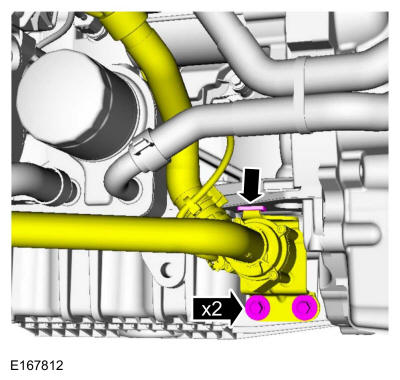

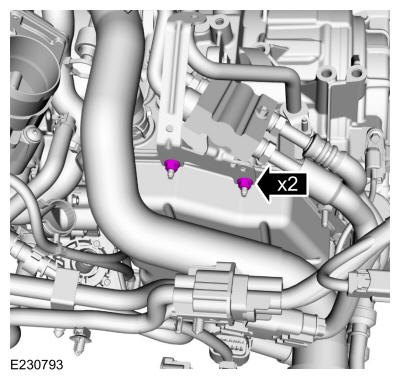

20. Install the transmission fluid warmer bracket nut.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

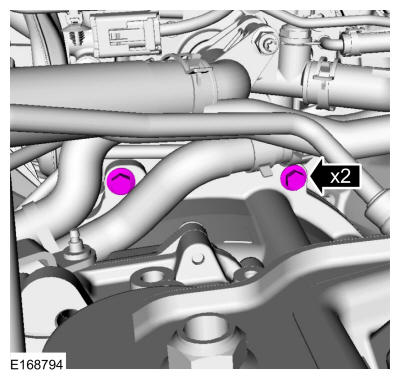

21. Install the catalytic converter support bracket, the bolts and the nuts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Tighten in the sequence shown.

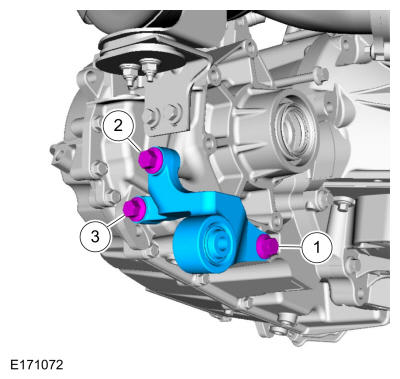

    Install the roll restrictor bracket and the bolts.

    Torque: 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the starter insulator.

    Courtesy of FORD MOTOR COMPANY

24. Install the starter motor. Refer to: Starter Motor .
25. Connect the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

    Auto-Start-Stop

26. Connect the transmission fluid auxiliary pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

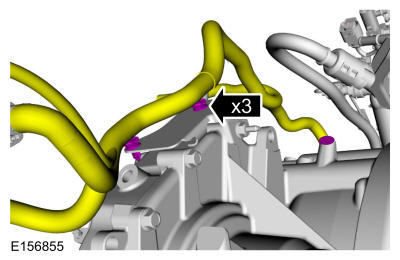

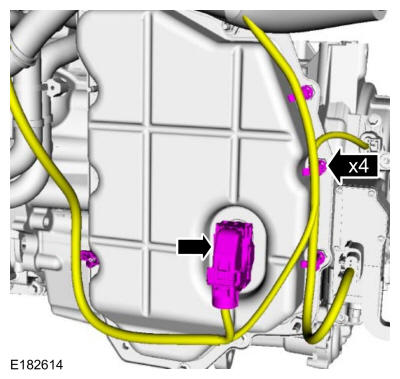

27. Connect the electrical connector and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

28. Inspect the LH halfshaft hub for wear or damage and install a new halfshaft, if necessary.
    1. Inspect the differential seal surface.
    2. Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

29. Install the new inner halfshaft retaining circlip.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new LH halfshaft seal. Refer to: Halfshaft Seal LH .

31. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

32. NOTE: Do not fully install shaft at this time.

    Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: When seated correctly, the halfshaft bearing retaining clip can be felt as it snaps into the differential side gear groove.

    Insert the halfshaft until the halfshaft retaining clip is fully seated.

    Courtesy of FORD MOTOR COMPANY

34. 1. Inspect the RH halfshaft seal surface.
    2. Inspect the dust shield.
    3. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD .

36. Install the seal protector.

    Courtesy of FORD MOTOR COMPANY

37. Push the RH halfshaft into the transmission so the splines go through the seal protector and remove the seal protector.

    Courtesy of FORD MOTOR COMPANY

38. Install the RH halfshaft assembly.

    Courtesy of FORD MOTOR COMPANY

39. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 18 lb.ft (25 Nm) | Stage 3: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

40. Install the front subframe. Refer to: Front Subframe - 1.5L EcoBoost (118kW/160PS) - I4 2.0L EcoBoost (184kW/250PS) - MI4 2.5L Duratec (125kW/170PS) .
41. Install the ground cable and the nut.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Connect the TSS sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

43. Install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Connect the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

45. Install the selector lever cable bracket and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner Outlet Pipe .

47. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 1.5L EcoBoost (118kW/160PS) - I4 .
48. Compress the constant tension clamp and remove the transmission vent from the fill tube.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: The following fluid amounts listed below are for initial fill only. The transmission fluid must be even with the oil leveling plug hole and the transmission must be at normal operating temperature 85-93°C (185-200°F) or transmission damage can occur.
    1. Transmission overhaul (includes main control and torque converter drain)

       Volume

       : 6.34 qt (6 L)

    2. Main control overhaul or replace (with out transmission overhaul)

       Volume

       : 5.28 qt (5 L)

    3. Transmission draining and filling (for engine and halfshaft related repairs)

       Volume

       : 4.23 qt (4 L)

    • Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

50. Start the engine and slowly select each gear, stopping in each position and allowing the transmission to engage.
51. With the vehicle on a level hoist, the engine running in PARK, remove the oil leveling plug and allow the transmission fluid to drain until its even with the oil leveling plug hole. If the transmission fluid does not drain from the oil leveling plug hole add transmission fluid in increments of 0.25 L (0.264 qt) until the transmission fluid is even with the oil leveling plug hole. Install the oil leveling plug.
    1. Standard transmission case (M10 plug)

       Torque: 71 lb.in (8 Nm)

    2. Fuel economy transmission case (M20 plug)

       Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

52. With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Only download the solenoid strategy at this time. The Adaptive Learning Drive Cycle will be completed later in this procedure.

    If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .

    Auto-Start-Stop

54. NOTE: TFT must be greater than 38°C (100°F) for the PCM to command the pump on.

    Using the scan tool verify the TFT is above 38°C (100°F).

    • If TFT is below 38°C (100°F), run engine at 3000 RPM until specified temperature is achieved (approximately 2-4 minutes).

55. Prime the Transmission Fluid Auxiliary Pump.
    1. Key ON, Engine OFF.
    2. Using the scan tool, command TRANS_PMP_CMD to 80% for 30 seconds. If the pump cannot be commanded on, verify TFT is above 38°C (100°F).
    3. Clear DTCs.

56. Carry out a road test until there is a stop / start event. If the restart is harsh, repeat the Transmission Fluid Pump prime procedure.
57. Continue road test and evaluate each stop / start event. Repeat prime procedure until three consecutive normal stop / start events are achieved.

    All vehicles

58. Using a scan tool, drive the vehicle until the transmission is at normal operating temperature 85-93°C (185-200°F).
59. After completing the repairs perform the Misfire Monitor Neutral Profile Correction procedure.
60. If a new solenoid body is installed, complete the Adaptive Learning Drive Cycle. Refer to: Adaptive Learning Drive Cycle .
61. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
