Transmission Range Control Module (TRCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: When installing a new TRCM, it is necessary to initiate "Default to Park".

    Perform the following steps to initiate "Default to Park".

    1. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
    2. Turn key on, engine off.
    3. Open the driver door and leave open.
    4. Shift the vehicle to R by selecting R on the GSM.
    5. NOTE: Release the locking tab on the TRCM electrical connector before disconnecting.

      Disconnect the TRCM electrical connector and wait approximately 5 seconds until "Default to Park" initiates.

    6. Turn the key off and close the driver door.

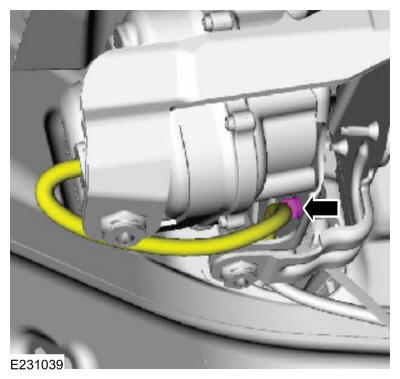

  3. Detach the wiring harness retainer.
    GFD483847Courtesy of FORD MOTOR COMPANY
  4. Disconnect the selector lever cable from the TRCM lever.
    GFD483848Courtesy of FORD MOTOR COMPANY
  5. Remove the retaining clip bolt and detach the selector lever cable from the selector lever cable bracket.
    GFD483849Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the TRCM.
GFD483850Courtesy of FORD MOTOR COMPANY
