Transmission Control Switch (TCS): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

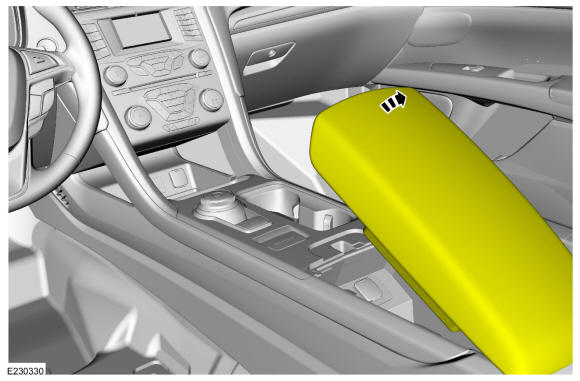

Open the console.

Courtesy of FORD MOTOR COMPANY
On both sides. Detach the clips and remove the floor console upper side finish panels.

Courtesy of FORD MOTOR COMPANY

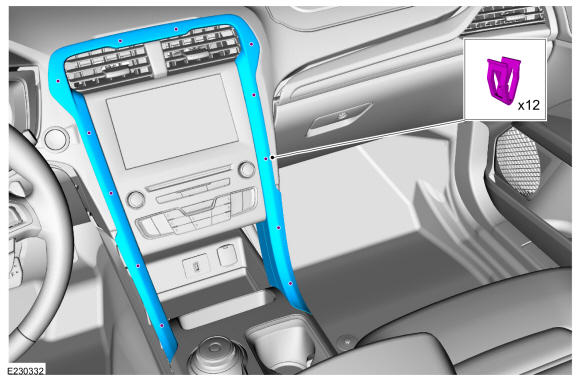

Detach the clips and remove the instrument panel center finish panel.

Courtesy of FORD MOTOR COMPANY

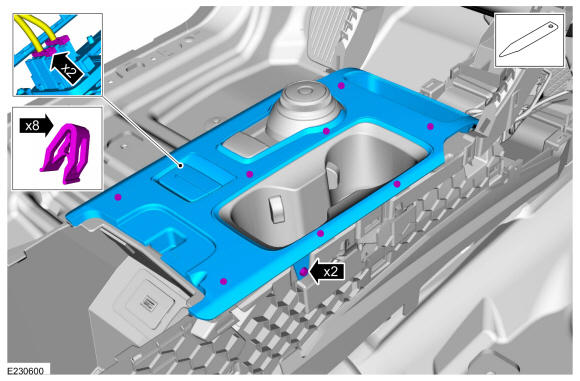

Remove the screws, detach the clips, disconnect the electrical connectors and remove the floor console finish panel.

Courtesy of FORD MOTOR COMPANY

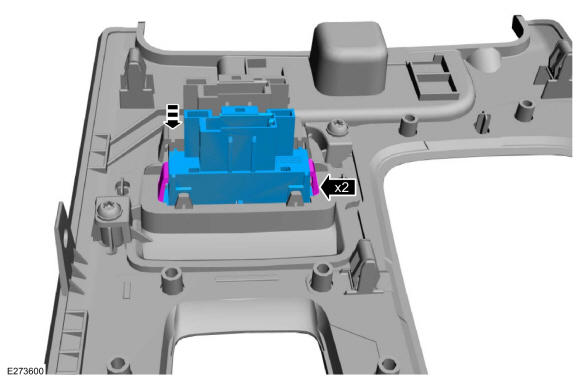

Release the tabs and remove the TCS.

Courtesy of FORD MOTOR COMPANY
